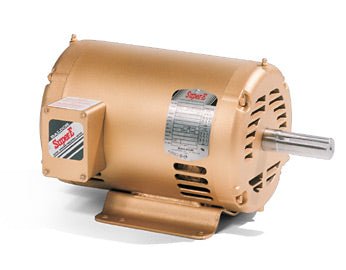

EM2515T-G Baldor Motor 20HP 1765RPM 256T OPSB 230/460 Volt 3 Phase 39E366X952G1
Regular price
Regular price
Sale
Sale price
- Description
- Specs
- Nameplate
- Performance
- Parts
Description
Spec # 39E366X952G1
Baldor Premium Efficient Motors used for Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives
Specs
Catalog NumberEM2515T-G
EnclosureODP
Frame256T
Frame MaterialSteel
Frequency60.00 Hz
Haz Area Class and GroupNone
Haz Area DivisionNot Applicable
Motor Letter TypeThree Phase
Output @ Frequency20.000 HP @ 60 HZ
Phase3
Synchronous Speed @ Frequency1800 RPM @ 60 HZ
Voltage @ Frequency460.0 V @ 60 HZ
230.0 V @ 60 HZ Agency ApprovalsCURUSEEV
NEMA_PREMIUM Ambient Temperature40 °C Auxillary BoxNo Auxillary Box Auxillary Box Lead TerminationNone Base IndicatorRigid Bearing Grease TypePolyrex EM (-20F +300F) BlowerNone Current @ Voltage48.000 A @ 230.0 V
52.000 A @ 208.0 V
24.000 A @ 460.0 V Design CodeA Drip CoverNo Drip Cover Duty RatingCONT Efficiency @ 100% Load93.0 % Electrically Isolated BearingNot Electrically Isolated Feedback DeviceNO FEEDBACK Front Face CodeStandard Front Shaft IndicatorNone Heater IndicatorNo Heater High Voltage Full Load Amps24.0 a Insulation ClassH Inverter CodeInverter Ready KVA CodeG Lifting LugsStandard Lifting Lugs Locked Bearing IndicatorNo Locked Bearing Motor Lead ExitKo Box Motor Lead Quantity/Wire Size9 @ 10 AWG Motor Lead TerminationFlying Leads Motor StandardsNEMA Motor Type3948M Mounting ArrangementF1 Number of Poles4 Overall Length23.19 IN Power Factor85 Product FamilyGeneral Purpose Pulley End Bearing TypeBall Pulley Face CodeStandard Pulley Shaft IndicatorStandard Rodent ScreenNone RoHS StatusROHS COMPLIANT Service Factor1.15 Shaft Diameter1.625 IN Shaft Extension LocationPulley End Shaft Ground IndicatorShaft Grounding Shaft RotationReversible Shaft Slinger IndicatorNo Slinger Speed1765 rpm Speed CodeSingle Speed Starting MethodDirect on line Thermal Device - BearingNone Thermal Device - WindingNone Vibration Sensor IndicatorNo Vibration Sensor Winding Thermal 1None Winding Thermal 2None
230.0 V @ 60 HZ Agency ApprovalsCURUSEEV
NEMA_PREMIUM Ambient Temperature40 °C Auxillary BoxNo Auxillary Box Auxillary Box Lead TerminationNone Base IndicatorRigid Bearing Grease TypePolyrex EM (-20F +300F) BlowerNone Current @ Voltage48.000 A @ 230.0 V
52.000 A @ 208.0 V
24.000 A @ 460.0 V Design CodeA Drip CoverNo Drip Cover Duty RatingCONT Efficiency @ 100% Load93.0 % Electrically Isolated BearingNot Electrically Isolated Feedback DeviceNO FEEDBACK Front Face CodeStandard Front Shaft IndicatorNone Heater IndicatorNo Heater High Voltage Full Load Amps24.0 a Insulation ClassH Inverter CodeInverter Ready KVA CodeG Lifting LugsStandard Lifting Lugs Locked Bearing IndicatorNo Locked Bearing Motor Lead ExitKo Box Motor Lead Quantity/Wire Size9 @ 10 AWG Motor Lead TerminationFlying Leads Motor StandardsNEMA Motor Type3948M Mounting ArrangementF1 Number of Poles4 Overall Length23.19 IN Power Factor85 Product FamilyGeneral Purpose Pulley End Bearing TypeBall Pulley Face CodeStandard Pulley Shaft IndicatorStandard Rodent ScreenNone RoHS StatusROHS COMPLIANT Service Factor1.15 Shaft Diameter1.625 IN Shaft Extension LocationPulley End Shaft Ground IndicatorShaft Grounding Shaft RotationReversible Shaft Slinger IndicatorNo Slinger Speed1765 rpm Speed CodeSingle Speed Starting MethodDirect on line Thermal Device - BearingNone Thermal Device - WindingNone Vibration Sensor IndicatorNo Vibration Sensor Winding Thermal 1None Winding Thermal 2None
Nameplate
| CAT.NO. | EM2515T-G | |||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPEC. | 39E366X952G1 | |||||||||||||||||||||||||||||||||||
| HP | 20 | |||||||||||||||||||||||||||||||||||
| VOLTS | 230/460 | |||||||||||||||||||||||||||||||||||
| AMPS | 48/24 | |||||||||||||||||||||||||||||||||||
| RPM | 1765 | |||||||||||||||||||||||||||||||||||
| FRAME | 256T | HZ | 60 | PH | 3 | |||||||||||||||||||||||||||||||
| SF | 1.15 | CODE | G | DES | A | CLASS | H | |||||||||||||||||||||||||||||
| NEMA NOM. EFF | 93 | PF | 85 | |||||||||||||||||||||||||||||||||
| RATING | 40C AMB-CONT | |||||||||||||||||||||||||||||||||||
| CC | 010A | |||||||||||||||||||||||||||||||||||
| ENCL | OPSB | SN | ||||||||||||||||||||||||||||||||||
| DE | 6309 | ODE | 6208 | |||||||||||||||||||||||||||||||||
| VPWM INVERTER READY | ||||||||||||||||||||||||||||||||||||
| CT30-60(2:1) VT3-60(20:1) | ||||||||||||||||||||||||||||||||||||
| USABLE AT | 50HZ 20HP 190/380V 58/29A | SF1.0 | ||||||||||||||||||||||||||||||||||
Performance
Performance Data at
(Typical performance - Not guaranteed values)General Characteristics
| Full Load Torque | 59.7 LB-FT | Start Configuration | DOL |
|---|---|---|---|
| No-Load Current | 8.83 Amps | Break-Down Torque | 187 LB-FT |
| Line-line Res. @ 25°C. | 0.48438 Ohms A Ph / 0 Ohms B Ph | Pull-Up Torque | 78.1 LB-FT |
| Temp. Rise @ Rated Load | 37°C | Locked-Rotor Torque | 112 LB-FT |
| Temp. Rise @ S.F. Load | 46°C | Starting Current | 156 Amps |
Load Characteristics
| % of Rated Load | 25 | 50 | 75 | 100 | 125 | 150 | S.F. | |
|---|---|---|---|---|---|---|---|---|
| Power Factor | 50 | 72 | 81 | 85 | 87 | 87 | 86 | |
| Efficiency | 90.2 | 93.3 | 93.5 | 93 | 92.2 | 91 | 92.5 | |
| Speed (RPM) | 1792.2 | 1784.8 | 1776.1 | 1767.5 | 1757.6 | 1746.3 | 1762 | |
| Line Amperes | 10.5 | 14 | 18.6 | 23.8 | 29.4 | 35.6 | 27.2 |
Parts
