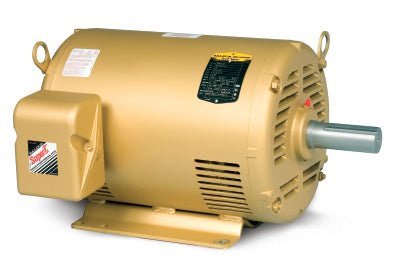

* Image is for reference only

EM2504T Baldor Motor 5HP 900RPM 254T OPSB 230/460 Volt 3 Phase 39K057X911

SKU: EM2504T
Sale
Description

Spec# 39K057X911

Baldor Premium Efficient Motors used for Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives

Specs
Catalog NumberEM2504T EnclosureOPSB Frame254T Frame MaterialSteel Frequency60.00 Hz Haz Area Class and GroupNone Haz Area DivisionNot Applicable Motor Letter TypeThree Phase Output @ Frequency5.000 HP @ 60 HZ Phase3 Synchronous Speed @ Frequency900 RPM @ 60 HZ Voltage @ Frequency460.0 V @ 60 HZ
230.0 V @ 60 HZ Agency ApprovalsCURUSEEV
NEMA PREMIUM Ambient Temperature40 °C Auxillary BoxNo Auxillary Box Auxillary Box Lead TerminationNone Base IndicatorRigid Bearing Grease TypePolyrex EM (-20F +300F) BlowerNone Current @ Voltage17.200 A @ 208.0 V
8.000 A @ 460.0 V
16.000 A @ 230.0 V Design CodeB Drip CoverNo Drip Cover Duty RatingCONT Efficiency @ 100% Load88.5 % Electrically Isolated BearingNot Electrically Isolated Feedback DeviceNO FEEDBACK Front Face CodeStandard Front Shaft IndicatorNone Heater IndicatorNo Heater High Voltage Full Load Amps8.0 a Insulation ClassF Inverter CodeInverter Ready KVA CodeH Lifting LugsStandard Lifting Lugs Locked Bearing IndicatorNo Locked Bearing Motor Lead ExitKo Box Motor Lead Quantity/Wire Size9 @ 12 AWG Motor Lead TerminationFlying Leads Motor StandardsNEMA Motor Type3952M Mounting ArrangementF1 Number of Poles8 Overall Length23.19 IN Power Factor66 Product FamilyGeneral Purpose Pulley End Bearing TypeBall Pulley Face CodeStandard Pulley Shaft IndicatorStandard Rodent ScreenNone RoHS StatusROHS COMPLIANT Service Factor1.15 Shaft Diameter1.625 IN Shaft Extension LocationPulley End Shaft Ground IndicatorNo Shaft Grounding Shaft RotationReversible Shaft Slinger IndicatorNo Slinger Speed885 rpm Speed CodeSingle Speed Starting MethodDirect on line Thermal Device - BearingNone Thermal Device - WindingNone Vibration Sensor IndicatorNo Vibration Sensor Winding Thermal 1None Winding Thermal 2None
Nameplate
CAT.NO. EM2504T
SPEC. 39K057Y445
HP 5
VOLTS 230/460
AMP 16/8
RPM 885
FRAME 254T HZ 60 PH 3
SER.F. 1.15 CODE H DES B CL F
NEMA-NOM-EFF 88.5 PF 66
RATING 40C AMB-CONT
CC 010A
DE 6309 ODE 6208
ENCL OPSB SN
NP1259L
