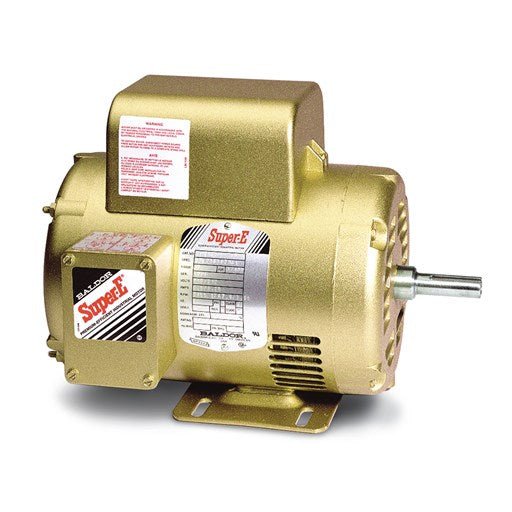

* Image is for reference only

EL1406T Baldor Motor 3HP 3450RPM 182T OPEN 115/208-230 Volt 1 Phase 36E002S117E7

SKU: EL1406T
Sale
Description

Spec # 36E002S117E7

Features:

  • Low noise vibration dampening base
  • Dynamically balanced rotor to increase bearing life
  • Superior switch design provides optimized torque profiles
  • Robust heavy gauge steel design
  • Optimized airflow design providing higher horsepower in a smaller package



Applications:

  • Material handling
  • Machine Tools
  • Fans
  • Pumps
  • Air handling
  • Conveyors
Specs
Catalog NumberEL1406T EnclosureODP Frame182T Frame MaterialSteel Frequency60.00 Hz Haz Area Class and GroupNone Haz Area DivisionNot Applicable Motor Letter TypeCap Start, Cap Run Output @ Frequency3.000 HP @ 60 HZ Phase1 Synchronous Speed @ Frequency3600 RPM @ 60 HZ Voltage @ Frequency230.0 V @ 60 HZ
115.0 V @ 60 HZ Agency ApprovalsCURUS
CURUSEEV
NEMA_PREMIUM Ambient Temperature40 °C Auxillary BoxNo Auxillary Box Auxillary Box Lead TerminationNone Base IndicatorRigid Bearing Grease TypePolyrex EM (-20F +300F) BlowerNone Current @ Voltage12.300 A @ 230.0 V
24.600 A @ 115.0 V Design CodeL Drip CoverNo Drip Cover Duty RatingCONT Efficiency @ 100% Load81.0 % Electrically Isolated BearingNot Electrically Isolated Feedback DeviceNO FEEDBACK Front Face CodeStandard Front Shaft IndicatorNone Heater IndicatorNo Heater High Voltage Full Load Amps12.3 a Insulation ClassF Inverter CodeNot Inverter KVA CodeG Lifting LugsNo Lifting Lugs Locked Bearing IndicatorNo Locked Bearing Motor Lead ExitKo Box Motor Lead Quantity/Wire Size4 @ 14 AWG, A PH Motor Lead TerminationFlying Leads Motor StandardsNEMA Motor Type3628LC Mounting ArrangementF1 Number of Poles2 Overall Length15.00 IN Power Factor98 Product FamilyGeneral Purpose Pulley End Bearing TypeBall Pulley Face CodeStandard Pulley Shaft IndicatorStandard Rodent ScreenNone Service Factor1.15 Shaft Diameter1.125 IN Shaft Extension LocationPulley End Shaft Ground IndicatorNo Shaft Grounding Shaft RotationReversible Shaft Slinger IndicatorNo Slinger Speed3450 rpm Speed CodeSingle Speed Starting MethodDirect on line Thermal Device - BearingNone Thermal Device - WindingNone Vibration Sensor IndicatorNo Vibration Sensor Winding Thermal 1None Winding Thermal 2None
Nameplate
CAT.NO. EL1406T
SPEC. 36E002S117E7
HP 3
VOLTS 115/230
AMP 24.6/12.3
RPM 3450
FRAME 182T HZ 60 PH 1
SER.F. 1.15 CODE G DES L CL F
NEMA-NOM-EFF 81 PF 98
RATING 40C AMB-CONT
CC
DE 6206 ODE 6205
ENCL OPEN SN
NP2116L
