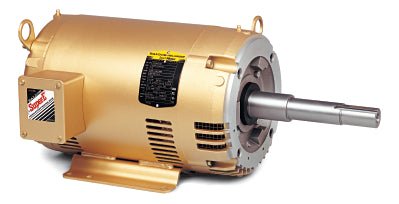

EJMM3311T Baldor Motor 7.5HP 1770RPM 213JM OPSB 208-230/460 Volt 3 Phase 37F784L863G1

Replaces model JMM3311T / Specification # 36M900S915H1

EJMM3311T Baldor pump motor is designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Baldor Electric Super-E motors are designed to conserve energy over extended time periods.

Specification # 37F784S520G1

Catalog Number    EJMM3311T
Enclosure    ODP
Frame    213JM
Frame Material    Steel
Frequency    60.00 Hz
Haz Area Class and Group    None
Haz Area Division    Not Applicable
Motor Letter Type    Three Phase
Output @ Frequency    7.500 HP @ 60 HZ
Phase    3
Synchronous Speed @ Frequency    1800 RPM @ 60 HZ
Voltage @ Frequency    460.0 V @ 60 HZ
230.0 V @ 60 HZ
Agency Approvals    CURUSEEV
NEMA_PREMIUM
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    Rigid
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    None
Current @ Voltage    20.600 A @ 208.0 V
9.800 A @ 460.0 V
19.600 A @ 230.0 V
Design Code    A
Drip Cover    No Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    91.0 %
Electrically Isolated Bearing    Not Electrically Isolated
Feedback Device    NO FEEDBACK
Front Face Code    Standard
Front Shaft Indicator    None
Heater Indicator    No Heater
High Voltage Full Load Amps    9.8 a
Insulation Class    F
Inverter Code    Inverter Ready
KVA Code    J
Lifting Lugs    Standard Lifting Lugs
Locked Bearing Indicator    Locked Bearing
Motor Lead Exit    Ko Box
Motor Lead Quantity/Wire Size    9 @ 14 AWG
Motor Lead Termination    Flying Leads
Motor Standards    NEMA
Motor Type    3734M
Mounting Arrangement    F1
Number of Poles    4
Overall Length    18.19 IN
Power Factor    79
Product Family    General Purpose
Pulley End Bearing Type    Ball
Pulley Face Code    C-Face
Pulley Shaft Indicator    Tapped & Key
Rodent Screen    Included
Service Factor    1.15
Shaft Diameter    0.875 IN
Shaft Extension Location    Pulley End
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Shaft Slinger Indicator    No Slinger
Speed    1770 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    None
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None
