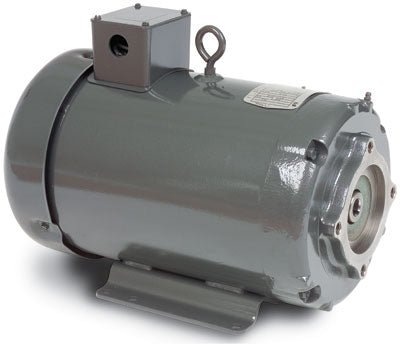

EHPM3714T Baldor Motor 10HP 1800RPM 215TYZ TEFC 230/460 Volt 3 Phase 37J606S518G1

Catalog Number    EHPM3714T
Enclosure    TEFC
Frame    215TYZ
Frame Material    Steel
Frequency    60.00 Hz
Haz Area Class and Group    None
Haz Area Division    Not Applicable
Motor Letter Type    Three Phase
Output @ Frequency    10.000 HP @ 60 HZ
Phase    3
Synchronous Speed @ Frequency    1800 RPM @ 60 HZ
Voltage @ Frequency    460.0 V @ 60 HZ
230.0 V @ 60 HZ
Agency Approvals    CURUSEEV
NEMA_PREMIUM
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    Rigid
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    None
Current @ Voltage    24.000 A @ 230.0 V
25.400 A @ 208.0 V
12.000 A @ 460.0 V
Design Code    A
Drip Cover    No Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    91.7 %
Electrically Isolated Bearing    Not Electrically Isolated
Feedback Device    NO FEEDBACK
Front Face Code    Standard
Front Shaft Indicator    None
Heater Indicator    No Heater
High Voltage Full Load Amps    12.0 a
Insulation Class    F
Inverter Code    Inverter Ready
KVA Code    K
Lifting Lugs    Standard Lifting Lugs
Locked Bearing Indicator    No Locked Bearing
Motor Lead Exit    Ko Box
Motor Lead Quantity/Wire Size    9 @ 14 AWG
Motor Lead Termination    Flying Leads
Motor Standards    NEMA
Motor Type    3752M
Mounting Arrangement    F3
Number of Poles    4
Overall Length    17.29 IN
Power Factor    85
Product Family    General Purpose
Pulley End Bearing Type    Ball
Pulley Face Code    SAE 2-Bolt B Pump Mount
Pulley Shaft Indicator    Bored & Key
Rodent Screen    None
Service Factor    1.15
Shaft Extension Location    None
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Shaft Slinger Indicator    No Slinger
Speed    1770 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    None
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None
