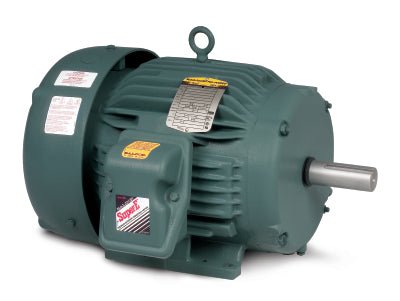

ECP3586T-4 Baldor Motor 2HP 3450RPM 143T TEFC 460 Volt 3 Phase 05F008W090G1

ECP3586T-4 Baldor 2HP 3450RPM 3PH 143T TEFC

Baldor Premium Efficient Severe Duty Totally Enclosed Fan Cooled Motors used for Typical applications include Petro-Chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operating conditions

THIS ITEM REPLACES CP3586T-4

Baldor Motor Parts, Diagrams and Specs Available!

Specification # 05F008W090G1

Catalog Number    ECP3586T-4
Enclosure    TEFC
Frame    145T
Frame Material    Cast Iron
Frequency    60.00 Hz
Haz Area Class and Group    CLI GP A,B,C,D
Haz Area Division    Division II
Motor Letter Type    Three Phase
Output @ Frequency    2.000 HP @ 60 HZ
Phase    3
Synchronous Speed @ Frequency    3600 RPM @ 60 HZ
Voltage @ Frequency    460.0 V @ 60 HZ
Agency Approvals    NEMA_PREMIUM
UR
CSA EEV
CCSA US
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    Rigid
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    None
Constant Torque Speed Range    3
Current @ Voltage    2.500 A @ 460.0 V
Design Code    B
Drip Cover    No Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    86.5 %
Electrically Isolated Bearing    Not Electrically Isolated
Feedback Device    NO FEEDBACK
Front Face Code    Standard
Front Shaft Indicator    None
Haz Area Temp Code    T4
Heater Indicator    No Heater
High Voltage Full Load Amps    2.5 a
Insulation Class    F
Inverter Code    Inverter Ready
KVA Code    N
Lifting Lugs    Standard Lifting Lugs
Locked Bearing Indicator    No Locked Bearing
Max Speed    5400 rpm
Motor Lead Exit    Ko Box
Motor Lead Quantity/Wire Size    3 @ 18 AWG
Motor Lead Termination    Flying Leads
Motor Standards    NEMA
Motor Type    0532M
Mounting Arrangement    F1
Number of Poles    2
Overall Length    12.88 IN
Power Factor    85
Product Family    Chemical Processing (Not DC)
Pulley End Bearing Type    Ball
Pulley Face Code    Standard
Pulley Shaft Indicator    Standard
Rodent Screen    None
Service Factor    1.15
Shaft Diameter    0.875 IN
Shaft Extension Location    Pulley End
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Shaft Slinger Indicator    Shaft Slinger
Speed    3450 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    None
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None
