EBM3703Y Baldor Motor 3HP 1760RPM 213U TEFC 230/460 Volt 3 Phase 36K140S266G1
Regular price
Regular price
Sale
Sale price
- Description
- Specs
- Nameplate
- Performance
- Parts
Description

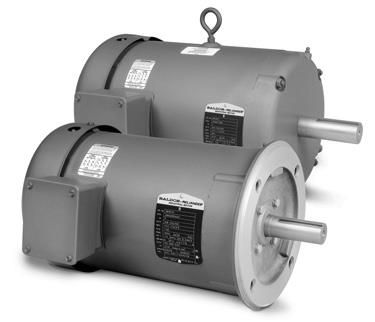

Buy Baldor brake motor EBM3703Y for a dependable handling unit with a quick and strong hold for conveyors, doors, tooling, seed reducers, packaging and more. This C-Face TEFC motor has a drive end fan for cooling, and more features include:
- Manual release
- Spring-set brake
- Easily accessible brake leads
- Vibration damping base
- Super-E® motors have NEMA Premium® efficiency
- Inverter ready Super-E motors
- Spec # 36K140S266G1
Specs
Catalog NumberEBM3703Y EnclosureTEFC Frame213 Frame MaterialSteel Frequency60.00 Hz Haz Area Class and GroupNone Haz Area DivisionNot Applicable Motor Letter TypeThree Phase Output @ Frequency3.000 HP @ 60 HZ Phase3 Synchronous Speed @ Frequency1800 RPM @ 60 HZ Voltage @ Frequency460.0 V @ 60 HZ
230.0 V @ 60 HZ Agency ApprovalsCURUSEEV
NEMA_PREMIUM Ambient Temperature40 °C Auxillary BoxNo Auxillary Box Auxillary Box Lead TerminationNone Base IndicatorRigid Bearing Grease TypePolyrex EM (-20F +300F) BlowerNone Current @ Voltage8.400 A @ 230.0 V
9.000 A @ 208.0 V
4.200 A @ 460.0 V Design CodeB Drip CoverNo Drip Cover Duty RatingCONT Efficiency @ 100% Load89.5 % Electrically Isolated BearingNot Electrically Isolated Feedback DeviceNO FEEDBACK Front Face CodeBrake Mounting Front Shaft IndicatorNone Heater IndicatorNo Heater High Voltage Full Load Amps4.2 a Insulation ClassF Inverter CodeInverter Ready KVA CodeK Lifting LugsNo Lifting Lugs Locked Bearing IndicatorNo Locked Bearing Motor Lead ExitKo Box Motor Lead Quantity/Wire Size9 @ 16 AWG Motor Lead TerminationFlying Leads Motor StandardsNEMA Motor Type3632M Mounting ArrangementF1 Number of Poles4 Overall Length22.42 IN Power Factor75 Product FamilyGeneral Purpose Pulley End Bearing TypeBall Pulley Face CodeStandard Pulley Shaft IndicatorStandard Rodent ScreenNone Service Factor1.15 Shaft Diameter1.125 IN Shaft Extension LocationPulley End Shaft Ground IndicatorNo Shaft Grounding Shaft RotationReversible Shaft Slinger IndicatorNo Slinger Speed1760 rpm Speed CodeSingle Speed Starting MethodDirect on line Thermal Device - BearingNone Thermal Device - WindingNone Vibration Sensor IndicatorNo Vibration Sensor Winding Thermal 1None Winding Thermal 2None
Nameplate
| CAT.NO. | EBM3703Y | |||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPEC. | 36K140S266G1 | |||||||||||||||||||||||||||||
| HP | 3 | |||||||||||||||||||||||||||||
| VOLTS | 230/460 | |||||||||||||||||||||||||||||
| AMP | 8.4/4.2 | |||||||||||||||||||||||||||||
| RPM | 1760 | |||||||||||||||||||||||||||||
| FRAME | 213 | HZ | 60 | PH | 3 | |||||||||||||||||||||||||
| SER.F. | 1.15 | CODE | K | DES | B | CL | F | |||||||||||||||||||||||
| NEMA-NOM-EFF | 89.5 | PF | 75 | |||||||||||||||||||||||||||
| RATING | 40C AMB-CONT | |||||||||||||||||||||||||||||
| CC | 010A | |||||||||||||||||||||||||||||
| DE | 6206 | ODE | 6205 | |||||||||||||||||||||||||||
| ENCL | TEFC | SN | ||||||||||||||||||||||||||||
Performance
Performance Data at
(Typical performance - Not guaranteed values)General Characteristics
| Full Load Torque | 8.8 LB-FT | Start Configuration | DOL |
|---|---|---|---|
| No-Load Current | 2.3 Amps | Break-Down Torque | 37.6 LB-FT |
| Line-line Res. @ 25°C. | 3.81 Ohms A Ph / 0 Ohms B Ph | Pull-Up Torque | 15.2 LB-FT |
| Temp. Rise @ Rated Load | 44°C | Locked-Rotor Torque | 21.7 LB-FT |
| Temp. Rise @ S.F. Load | 52°C | Starting Current | 32.7 Amps |
Load Characteristics
| % of Rated Load | 25 | 50 | 75 | 100 | 125 | 150 | S.F. | |
|---|---|---|---|---|---|---|---|---|
| Power Factor | 35 | 55 | 68 | 75 | 80 | 82 | 77 | |
| Efficiency | 81.1 | 87.8 | 89.6 | 89.8 | 89.7 | 88.2 | 89.2 | |
| Speed (RPM) | 1791 | 1783 | 1773 | 1764 | 1753 | 1741 | 1754 | |
| Line Amperes | 2.47 | 2.85 | 3.43 | 4.09 | 4.89 | 5.78 | 4.63 |
