EBM3609Y Baldor Motor 2HP 1725RPM 184 TEFC 3 Phase 35M527N909G1

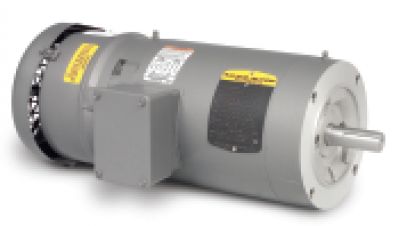

* Image is for reference only

EBM3609Y Baldor Motor 2HP 1725RPM 184 TEFC 230/460 Volt 3 Phase 35M527N909G1

SKU: EBM3609Y

$1,873.20

~~$3,122.00~~ Sale $1,873.20

Description
Specs
Nameplate
Peformance
Parts

Description

Specification # 35M527P805G1

Baldor Brake Totally Enclosed Fan Cooled Motors used for Machine tools, conveyors, door operators, speed reducers, any application requiring quick stops and positive hold.

Specs

Catalog NumberEBM3609Y EnclosureTEFC Frame184 Frame MaterialSteel Frequency60.00 Hz Haz Area Class and GroupNone Haz Area DivisionNot Applicable Motor Letter TypeThree Phase Output @ Frequency2.000 HP @ 60 HZ Phase3 Synchronous Speed @ Frequency1800 RPM @ 60 HZ Voltage @ Frequency460.0 V @ 60 HZ
230.0 V @ 60 HZ Agency ApprovalsCURUSEEV
NEMA_PREMIUM Ambient Temperature40 °C Auxillary BoxNo Auxillary Box Auxillary Box Lead TerminationNone Base IndicatorRigid Bearing Grease TypePolyrex EM (-20F +300F) BlowerNone Current @ Voltage5.600 A @ 230.0 V
5.800 A @ 208.0 V
2.800 A @ 460.0 V Design CodeB Drip CoverNo Drip Cover Duty RatingCONT Efficiency @ 100% Load86.5 % Electrically Isolated BearingNot Electrically Isolated Feedback DeviceNO FEEDBACK Front Face CodeBrake Mounting Front Shaft IndicatorNone Heater IndicatorNo Heater High Voltage Full Load Amps2.8 a Insulation ClassF Inverter CodeInverter Ready KVA CodeK Lifting LugsNo Lifting Lugs Locked Bearing IndicatorNo Locked Bearing Motor Lead ExitKo Box Motor Lead Quantity/Wire Size9 @ 18 AWG Motor Lead TerminationFlying Leads Motor StandardsNEMA Motor Type3528M Mounting ArrangementF1 Number of Poles4 Overall Length17.49 IN Power Factor77 Product FamilyGeneral Purpose Pulley End Bearing TypeBall Pulley Face CodeStandard Pulley Shaft IndicatorStandard Rodent ScreenNone RoHS StatusROHS COMPLIANT Service Factor1.15 Shaft Diameter0.875 IN Shaft Extension LocationPulley End Shaft Ground IndicatorNo Shaft Grounding Shaft RotationReversible Shaft Slinger IndicatorNo Slinger Speed1760 rpm Speed CodeSingle Speed Starting MethodDirect on line Thermal Device - BearingNone Thermal Device - WindingNone Vibration Sensor IndicatorNo Vibration Sensor Winding Thermal 1None Winding Thermal 2None

Nameplate

CAT.NO.	EBM3609Y
SPEC.	35M527G073G1
HP	2
VOLTS	230/460
AMP	5.6/2.8
RPM	1760
FRAME	184			HZ		60					PH	3
SER.F.	1.15	CODE			K	DES		B	CL	F
NEMA-NOM-EFF	86.5		PF		77
RATING	40C AMB-CONT
CC	010A
DE	6205			ODE			6203
ENCL	TEFC	SN
	SFA 6.26/3.13

Peformance

Performance Data at

(Typical performance - Not guaranteed values)

General Characteristics

Full Load Torque	5.99 LB-FT	Start Configuration	DOL
No-Load Current	1.62 Amps	Break-Down Torque	20.5 LB-FT
Line-line Res. @ 25°C.	9.54 Ohms A Ph / 0 Ohms B Ph	Pull-Up Torque	13.8 LB-FT
Temp. Rise @ Rated Load	64°C	Locked-Rotor Torque	15 LB-FT
Temp. Rise @ S.F. Load	77°C	Starting Current	22.5 Amps

Load Characteristics

% of Rated Load	25	50	75	100	125	150	S.F.
Power Factor	35	55	68	76	81	84	80
Efficiency	78.3	85.3	86.9	86.5	85.3	83.6	86.1
Speed (RPM)	1791	1782	1771	1760	1748	1734	1754
Line Amperes	1.71	1.97	2.34	2.82	3.36	3.97	3.13

Parts

Product Number	Description	Quantity
SA402662	SA 35M527G073G1	1 EA
RA393939	RA 35M527G073G1	1 EA
NS2512A01	INSULATOR, CONDUIT BOX X	1 EA
35CB3007	35 CB CASTING W/.88 DIA. LEAD HOLE	1 EA
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 EA
51XB1016A07	10-16 X 7/16 HXWSSLD SERTYB	2 EA
11XW1032G06	10-32 X .38, TAPTITE II, HEX WSHR SLTD U	1 EA
35EP3900T02	SPL FACE MTD FR EP-ENCL-W/STEARNS BRAKE	1 EA
HW4500A01	1641B(ALEMITE)400 UNIV, GREASE FITT	1 EA
HW5100A03	WAVY WASHER (W1543-017)	1 EA
35EP3123F01	F00 W/FH MTG	1 EA
HW4500A01	1641B(ALEMITE)400 UNIV, GREASE FITT	1 EA
XY1032A02	10-32 HEX NUT DIRECTIONAL SERRATION	4 EA
HW2501D10	KEY, 3/16 SQ X 1.000	1 EA
HW2500A16	KEY USA #606, WOODRUFF	1 EA
MG1050Y01	CELEROL BALDOR GOLD *** NLA IN 5 GALLON	0.017 GA
35FH4005A13	IEC FH W/GRSR & 1.09 SHAFT HOLE, W/	1 EA
51XW1032A06	10-32 X .38, TAPTITE II, HEX WSHR SLTD S	3 EA
35CB4521GX	CONDUIT BOX LID KIT **ORDER INDIV PARTS	1 EA
51XW0832A07	8-32 X .44, TAPTITE II, HEX WSHR SLTD SE	4 EA
HW2501D13	KEY, 3/16 SQ X 1.375	1 EA
HA7000A01	KEY RETAINER 7/8" DIA SHAFT	1 EA
85XU0407S04	4X1/4 U DRIVE PIN STAINLESS	2 EA
MJ1000A02	GREASE, POLYREX EM EXXON	0.05 LB
84XN3816J28	HEX SOC HD, 3/8-16 X 1.75 LONG	2 EA
35FN3002A02SP	EXFN, PLASTIC, 6.376 OD, .987 ID W/KEY	1 EA
HW2500A16	KEY USA #606, WOODRUFF	1 EA
HA3100A18	THRUBOLT 10-32 X 9.250	4 EA
76BK3100BQF	1-056-031-00-BQF BRAKE TDR# 79345	1 EA
LB1404	BRAKE CONNECTION LABEL	1 EA
LC0005E01	CONN.DIA./WARNING LABEL (LC0005/LB1119N)	1 EA
NP1259L	ALUM SUPER-E UL CC NEMA PREMIUM A60	1 EA
G7PA1000	PKG GRP, PRINT PK1034A06	1 EA
MN416A01	TAG-INSTAL-MAINT no wire (2500bx)4/22	1 EA
