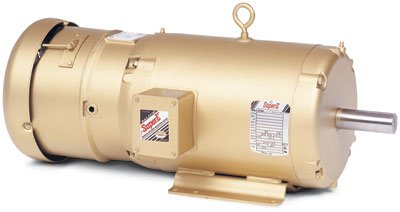

EBM3546T Baldor Motor 1HP 1765RPM 143T TEFC 208-230/460 Volt 3 Phase 35X075M492G1
Regular price
$1,587.60
Regular price
$2,646.00
Sale
Sale price
$1,587.60
- Description
- Specs
- Nameplate
- Performance
- Parts
Description
Specification # 35X075M492G1
Baldor's line of brake motors are available in totally enclosed fan cooled, open drip proof, or explosion proof designs, in either single or three phase. Stock ratings are available from 1/4 HP through 30 HP. These motors use a mechanical spring set brake with a manual release. Brake motors may be used on machine tools, conveyors, door operators, speed reducers, hoists, or any application requiring quick stops and positive holds.
Specs
Catalog NumberEBM3546T
EnclosureTEFC
Frame143T
Frame MaterialSteel
Frequency60.00 Hz
Haz Area Class and GroupNone
Haz Area DivisionNot Applicable
Motor Letter TypeThree Phase
Output @ Frequency1.000 HP @ 60 HZ
Phase3
Synchronous Speed @ Frequency1800 RPM @ 60 HZ
Voltage @ Frequency230.0 V @ 60 HZ
460.0 V @ 60 HZ Agency ApprovalsNEMA_PREMIUM
CURUSEEV Ambient Temperature40 °C Auxillary BoxNo Auxillary Box Auxillary Box Lead TerminationNone Base IndicatorRigid Bearing Grease TypePolyrex EM (-20F +300F) BlowerNone Brake Torque6.0 lb-ft Current @ Voltage1.600 A @ 460.0 V
3.200 A @ 208.0 V
3.200 A @ 230.0 V Design CodeB Drip CoverNo Drip Cover Duty RatingCONT Efficiency @ 100% Load85.5 % Electrically Isolated BearingNot Electrically Isolated Feedback DeviceNO FEEDBACK Front Face CodeBrake Mounting Front Shaft IndicatorNone Heater IndicatorNo Heater High Voltage Full Load Amps1.6 a Insulation ClassF Inverter CodeInverter Duty KVA CodeN Lifting LugsNo Lifting Lugs Locked Bearing IndicatorNo Locked Bearing Motor Lead ExitKo Box Motor Lead Quantity/Wire Size9 @ 18 AWG Motor Lead TerminationFlying Leads Motor StandardsNEMA Motor Type3520M Mounting ArrangementF1 Number of Poles4 Overall Length14.40 IN Power Factor69 Product FamilyGeneral Purpose Product TypeBRAKE MOTOR Pulley End Bearing TypeBall Pulley Face CodeStandard Pulley Shaft IndicatorStandard Rodent ScreenNone RoHS StatusROHS COMPLIANT Service Factor1.15 Shaft Diameter0.875 IN Shaft Extension LocationPulley End Shaft Ground IndicatorNo Shaft Grounding Shaft RotationReversible Shaft Slinger IndicatorNo Slinger Speed1770 rpm Speed CodeSingle Speed Starting MethodDirect on line Thermal Device - BearingNone Thermal Device - WindingNone Vibration Sensor IndicatorNo Vibration Sensor Winding Thermal 1None Winding Thermal 2None
460.0 V @ 60 HZ Agency ApprovalsNEMA_PREMIUM
CURUSEEV Ambient Temperature40 °C Auxillary BoxNo Auxillary Box Auxillary Box Lead TerminationNone Base IndicatorRigid Bearing Grease TypePolyrex EM (-20F +300F) BlowerNone Brake Torque6.0 lb-ft Current @ Voltage1.600 A @ 460.0 V
3.200 A @ 208.0 V
3.200 A @ 230.0 V Design CodeB Drip CoverNo Drip Cover Duty RatingCONT Efficiency @ 100% Load85.5 % Electrically Isolated BearingNot Electrically Isolated Feedback DeviceNO FEEDBACK Front Face CodeBrake Mounting Front Shaft IndicatorNone Heater IndicatorNo Heater High Voltage Full Load Amps1.6 a Insulation ClassF Inverter CodeInverter Duty KVA CodeN Lifting LugsNo Lifting Lugs Locked Bearing IndicatorNo Locked Bearing Motor Lead ExitKo Box Motor Lead Quantity/Wire Size9 @ 18 AWG Motor Lead TerminationFlying Leads Motor StandardsNEMA Motor Type3520M Mounting ArrangementF1 Number of Poles4 Overall Length14.40 IN Power Factor69 Product FamilyGeneral Purpose Product TypeBRAKE MOTOR Pulley End Bearing TypeBall Pulley Face CodeStandard Pulley Shaft IndicatorStandard Rodent ScreenNone RoHS StatusROHS COMPLIANT Service Factor1.15 Shaft Diameter0.875 IN Shaft Extension LocationPulley End Shaft Ground IndicatorNo Shaft Grounding Shaft RotationReversible Shaft Slinger IndicatorNo Slinger Speed1770 rpm Speed CodeSingle Speed Starting MethodDirect on line Thermal Device - BearingNone Thermal Device - WindingNone Vibration Sensor IndicatorNo Vibration Sensor Winding Thermal 1None Winding Thermal 2None
Nameplate
| CAT.NO. | EBM3546T | |||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPEC. | 35X075G004G1 | |||||||||||||||||||||||||||||
| HP | 1 | |||||||||||||||||||||||||||||
| VOLTS | 230/460 | |||||||||||||||||||||||||||||
| AMP | 3.2/1.6 | |||||||||||||||||||||||||||||
| RPM | 1770 | |||||||||||||||||||||||||||||
| FRAME | 143T | HZ | 60 | PH | 3 | |||||||||||||||||||||||||
| SER.F. | 1.15 | CODE | N | DES | B | CL | F | |||||||||||||||||||||||
| NEMA-NOM-EFF | 85.5 | PF | 69 | |||||||||||||||||||||||||||
| RATING | 40C AMB-CONT | |||||||||||||||||||||||||||||
| CC | 010A | |||||||||||||||||||||||||||||
| DE | 6205 | ODE | 6203 | |||||||||||||||||||||||||||
| ENCL | TEFC | SN | ||||||||||||||||||||||||||||
| SFA 3.4/1.7 | ||||||||||||||||||||||||||||||
Performance
Performance Data at
(Typical performance - Not guaranteed values)
General Characteristics
| Full Load Torque | 2.982 LB-FT | Start Configuration | DOL |
|---|---|---|---|
| No-Load Current | 1.2 Amps | Break-Down Torque | 14.6 LB-FT |
| Line-line Res. @ 25°C. | 16.049 Ohms A Ph / 0 Ohms B Ph | Pull-Up Torque | 7.57 LB-FT |
| Temp. Rise @ Rated Load | 36°C | Locked-Rotor Torque | 9.17 LB-FT |
| Temp. Rise @ S.F. Load | 41°C | Starting Current | 14.6 Amps |
Load Characteristics
| % of Rated Load | 25 | 50 | 75 | 100 | 125 | 150 | S.F. | |
|---|---|---|---|---|---|---|---|---|
| Power Factor | 29 | 45 | 58 | 67 | 73 | 78 | 71 | |
| Efficiency | 71.1 | 81.2 | 84.7 | 85.8 | 86 | 85.6 | 85.9 | |
| Speed (RPM) | 1794 | 1787.3 | 1781.1 | 1774.3 | 1767.4 | 1759.4 | 1770 | |
| Line Amperes | 1.22 | 1.31 | 1.46 | 1.64 | 1.86 | 2.11 | 1.77 |
