EBM2354TY Baldor Motor 20HP 1760RPM 256T TEFC 3 Phase 09E427T459G1

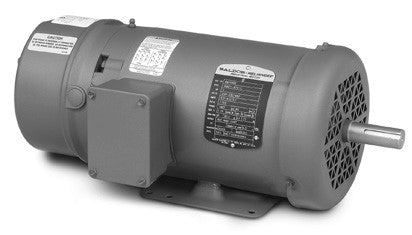

* Image is for reference only

EBM2354TY Baldor Motor 20HP 1760RPM 256T TEFC 208-230/460 Volt 3 Phase 09E427T459G1

SKU: EBM2354TY
$7,811.40
$13,019.00 Sale $7,811.40

Specification # 07K356X826H2

Baldor Electric motor for use with machine tools, conveyors, door operators, speed reducers, any application requiring quick stops and a positive hold.

Catalog NumberEBM2354TY EnclosureTEFC Frame256T Frame MaterialCast Iron Frequency60.00 Hz Haz Area Class and GroupNone Haz Area DivisionNot Applicable Motor Letter TypeThree Phase Output @ Frequency20.000 HP @ 60 HZ Phase3 Synchronous Speed @ Frequency1800 RPM @ 60 HZ Voltage @ Frequency460.0 V @ 60 HZ
230.0 V @ 60 HZ Agency ApprovalsCURUSEEV
NEMA_PREMIUM Ambient Temperature40 °C Auxillary BoxNo Auxillary Box Auxillary Box Lead TerminationNone Base IndicatorRigid Bearing Grease TypePolyrex EM (-20F +300F) BlowerNone Current @ Voltage48.000 A @ 230.0 V
52.000 A @ 208.0 V
24.000 A @ 460.0 V Design CodeA Drip CoverNo Drip Cover Duty RatingCONT Efficiency @ 100% Load93.0 % Electrically Isolated BearingNot Electrically Isolated Feedback DeviceNO FEEDBACK Front Face CodeBrake Mounting Front Shaft IndicatorNone Heater IndicatorNo Heater High Voltage Full Load Amps24.0 a Insulation ClassF Inverter CodeInverter Ready KVA CodeJ Lifting LugsStandard Lifting Lugs Locked Bearing IndicatorNo Locked Bearing Motor Lead ExitKo Box Motor Lead Quantity/Wire Size9 @ 10 AWG Motor Lead TerminationFlying Leads Motor StandardsNEMA Motor Type0960M Mounting ArrangementF1 Number of Poles4 Overall Length32.71 IN Power Factor83 Product FamilyGeneral Purpose Pulley End Bearing TypeBall Pulley Face CodeStandard Pulley Shaft IndicatorStandard Rodent ScreenNone Service Factor1.15 Shaft Diameter1.625 IN Shaft Extension LocationPulley End Shaft Ground IndicatorNo Shaft Grounding Shaft RotationReversible Shaft Slinger IndicatorShaft Slinger Speed1770 rpm Speed CodeSingle Speed Starting MethodDirect on line Thermal Device - BearingNone Thermal Device - WindingNone Vibration Sensor IndicatorNo Vibration Sensor Winding Thermal 1None Winding Thermal 2None
CAT.NO. EBM2354TY
SPEC. 09E427T459G1
HP 20
VOLTS 230/460
AMP 48/24
RPM 1770
FRAME 256T HZ 60 PH 3
SER.F. 1.15 CODE J DES A CL F
NEMA-NOM-EFF 93 PF 83
RATING 40C AMB-CONT
CC 010A
DE 6309 ODE 6308
ENCL TEFC SN
SFA 54.4/27.2


Performance Data at

 (Typical performance - Not guaranteed values)

General Characteristics

Full Load Torque 59.27 LB-FT Start Configuration DOL
No-Load Current 10.4 Amps Break-Down Torque 232 LB-FT
Line-line Res. @ 25°C. 0.33814 Ohms A Ph / 0 Ohms B Ph Pull-Up Torque 126 LB-FT
Temp. Rise @ Rated Load 58°C Locked-Rotor Torque 141 LB-FT
Temp. Rise @ S.F. Load 70°C Starting Current 198 Amps

Load Characteristics

% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 45 67 78 83 86 87 85
Efficiency 89.2 93 93.7 93.6 93.1 92.4 93.3
Speed (RPM) 1793.2 1786.4 1779.1 1771.9 1763.7 1755.3 1767
Line Amperes 11.8 15 19.2 24 29.3 34.9 27.2



Product Number Description Quantity
SA347945 SA 09E427T459G1 1 EA
RA336504
RA 09E427T459G1 1 EA
HW1002A63
WASHER, 5/8 HI-COLLAR SPRLCKWASHER 1 EA
09CB3003
CB W/1.75" DIA LD HL - 37, 39, 307 & 309 1 EA
09GS1000
GASKET-CONDUIT BOX, 1/16 THICK LEXIDE 1 EA
51XW2520A12
.25-20 X .75, TAPTITE II, HEX WSHR SLTD 4 EA
HW1001A25
LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 2 EA
WD1000B16
T&B CX70TN OR L70P TERMINAL LUG 1 EA
59XW2520G07
.25-20X.44,HEX SER WSHR,TAPTITE 2,GREEN 1 EA
09EP1301A100
PU/FR ENDPLATE, MACH 1 EA
HA3400A02
STUD- 3/8-16 X 5.25 HEX WELKER 4 EA
XY3816A12
3/8-16 FINISHED NUT W/SERRATIONS 4 EA
HW1001A38
LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4 EA
HW5100A10
W3519-038 WAVY WASHER, FOR 6308 BRG 1 EA
10XN2520K36
1/4-20 X 2.25" HX HD SCRWGRADE 5, ZINC P 2 EA
09EP1101A11SP
PU ENDPLATE, MACH 1 EA
10XN3816K28
3/8-16 X 1.75 HEX HD CAP SCREW, GRADE 5 4 EA
HW4600B44
V-RING SLINGER 1.500 X 1.810 X .28 VITON 1 EA
10XN2520K36
1/4-20 X 2.25" HX HD SCRWGRADE 5, ZINC P 4 EA
HW1001A25
LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4 EA
HW1001A38
LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4 EA
84XN5013L16
1/2-13X1 NYLOK TYP HX SOCHD CAP SCREW TD 4 EA
HW2501F16
KEY, 5/16 SQ X 1.750 1 EA
09FH4000A02
309 FH,PU END FH FOR BRAKE MTR 1 EA
HW1001A38
LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4 EA
09CB3501SP
CONDUIT BOX LID FOR 09CB3001 & 09CB3002 1 EA
09GS1013SP
GS FOR 09CB3501, 12CB1500 & 12CB1503 LID 1 EA
51XW2520A12
.25-20 X .75, TAPTITE II, HEX WSHR SLTD 2 EA
HW2501G25
KEY, 3/8 SQ X 2.875 1 EA
ML1400B14
14 AWG,BLANK,BLACK 36 IN
HW4500A03
GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1 EA
HW4500A17
317400 ALEMITE GREASE RELIEF 1 EA
HA4051A00
PLASTIC CAP FOR GREASE FITTING 1 EA
HA4054
SHORT T-DRAIN FITTING, .125" N.P.T. 1 EA
HA4054
SHORT T-DRAIN FITTING, .125" N.P.T. 1 EA
MJ1000A02
GREASE, POLYREX EM EXXON 0.08 LB
HW4500A03
GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1 EA
HW4500A17
317400 ALEMITE GREASE RELIEF 1 EA
HA4051A00
PLASTIC CAP FOR GREASE FITTING 1 EA
09FN2003A09
EXTERNAL FAN, MACH 1 EA
80XN3118J10
5/16-18 X 5/8 SET SCREW, HEX SOC, CUP PT 2 EA
MG1050Y01
CELEROL BALDOR GOLD *** NLA IN 5 GALLON 0.05 GA
85XU0407S04
4X1/4 U DRIVE PIN STAINLESS 2 EA
87BK6100GQF
1-087-061-00-GQF BRAKE 1 EA
LB1624
COMBINED WARNING LABEL, ISO/ANSI PICTOGR 1 EA
LC0181
CONNECTION LABEL 1 EA
NP1259L
ALUM SUPER-E UL CC NEMA PREMIUM A60 1 EA
42PA1010
PACKAGING GROUP, PRINT PK1151A06 1 EA
MN416A01
TAG-INSTAL-MAINT no wire (2500bx)4/22 1 EA
LD7020E09
LEAD SET, 10AWG, 9 LEAD, 20" LONG LEADS 1 EA
PE-0000003
ZRTG PE ASSEMBLY 1 EA
