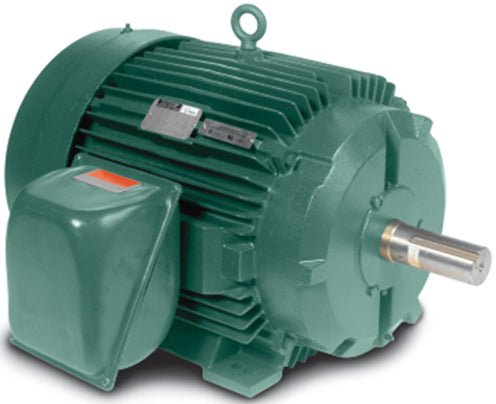

CXM18342T Baldor Motor 3HP 1800RPM 182t XPFC 230/460 Volt 3 Phase 36-0000-0465

Specification # 36-0000-0465

Replaces Baldor IDXM7542T

Explosion proof, inverter duty, Class I, group D, Class II, C-Face, Foot Mounted, 10:1 CT, 10:1 VT

Applications:

• Customer specified Division 1 Hazardous Areas
• Fixed speed and inverter operation

Features:

• Cast iron frame, endplates and conduit box
• Inverter Duty nameplate
• Normally Closed thermostats
• Threaded lead inlet
• Low noise vibration dampening bases

Baldor Motor Parts, Diagrams and Specs Available!

Catalog Number    CXM18342T
Enclosure    TEFC
Frame    182TC
Frame Material    Steel
Frequency    50.00 Hz
60.00 Hz
Haz Area Class and Group    CLI GP D; CLII GP F,G
Haz Area Division    Division I
Motor Letter Type    Three Phase
Output @ Frequency    2.000 HP @ 50 HZ
3.000 HP @ 60 HZ
Phase    3
Synchronous Speed @ Frequency    1800 RPM @ 60 HZ
Voltage @ Frequency    380.0 V @ 50 HZ
230.0 V @ 60 HZ
190.0 V @ 50 HZ
460.0 V @ 60 HZ
Agency Approvals    CSA EEV
UL
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    Rigid
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    None
Constant Torque Speed Range    6
Current @ Voltage    9.000 A @ 208.0 V
8.400 A @ 230.0 V
7.200 A @ 190.0 V
4.200 A @ 460.0 V
3.600 A @ 380.0 V
Design Code    B
Drip Cover    No Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    89.5 %
Electrically Isolated Bearing    Not Electrically Isolated
Feedback Device    NO FEEDBACK
Haz Area Temp Code    T3C
Heater Indicator    No Heater
High Voltage Full Load Amps    3.6 a
Insulation Class    F
Inverter Code    Inverter Duty
IP Rating    NONE
KVA Code    K
Lifting Lugs    No Lifting Lugs
Locked Bearing Indicator    Locked Bearing
Max Speed    2700 rpm
Motor Lead Termination    Flying Leads
Motor Standards    NEMA
Motor Type    3632M
Mounting Arrangement    F1
Number of Poles    4
Overall Length    18.86 IN
Power Factor    75
Product Family    General Purpose
Pulley Face Code    C-Face
Rodent Screen    None
Service Factor    1.15
Shaft Diameter    1.125 IN
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Speed    1760 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    Normally Closed Thermostat
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None
