CFM3166A Baldor Condenser Fan Motor 1.5HP 1140RPM 56YZ OPEN 3 Phase 35K306Y797

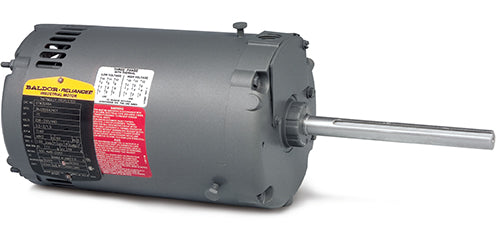

* Image is for reference only

CFM3166A Baldor Fan Motor 1.5HP 1140RPM 56YZ OPEN 208-230/460 Volt 3 Phase 35K306Y797

SKU: CFM3166A
$744.63
$1,179.00 Sale $744.63
Description

Specification # 35K306Y797

Baldor motor CFM3166A includes a Heavy-Gauge steel base, ball bearings, and is suitable for mounting in any position. Dynamically balanced rotors for reduced vibration and quiet operation.

Square One’s selection of fan motors holds many reliable options for your applications!

Baldor Motor Parts, Diagrams and Specs Available!



Specs
Catalog Number CFM3166A Enclosure OPAO Frame 56YZ Frame Material Steel Frequency 60.00 Hz Haz Area Class and Group None Haz Area Division Not Applicable Motor Letter Type Three Phase Output @ Frequency 1.500 HP @ 60 HZ Phase 3 Synchronous Speed @ Frequency 1200 RPM @ 60 HZ Voltage @ Frequency 208.0 V @ 60 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ Agency Approvals CURUS Ambient Temperature 60 °C Auxillary Box No Auxillary Box Auxillary Box Lead Termination None Base Indicator No Mounting Bearing Grease Type Polyrex EM (-20F +300F) Blower None Current @ Voltage 2.500 A @ 460.0 V
5.000 A @ 230.0 V
5.500 A @ 208.0 V Design Code B Drip Cover No Drip Cover Duty Rating CONT Efficiency @ 100% Load 76.0 % Electrically Isolated Bearing Not Electrically Isolated Feedback Device NO FEEDBACK Front Face Code Standard Front Shaft Indicator None Heater Indicator No Heater High Voltage Full Load Amps 2.5 a Insulation Class F Inverter Code Not Inverter KVA Code J Lifting Lugs No Lifting Lugs Locked Bearing Indicator No Locked Bearing Motor Lead Exit Terminal Panel Motor Lead Quantity/Wire Size 12 @ 18 AWG Motor Lead Termination None Motor Standards NEMA Motor Type 3534M Mounting Arrangement F1 Number of Poles 6 Overall Length 17.18 IN Power Factor 72 Product Family General Purpose Pulley End Bearing Type Sealed Bearing Pulley Face Code Other Pulley Shaft Indicator Key And Flat Rodent Screen None RoHS Status ROHS COMPLIANT Service Factor 1.15 Shaft Diameter 0.625 IN Shaft Extension Location Pulley End Shaft Ground Indicator No Shaft Grounding Shaft Rotation Reversible Shaft Slinger Indicator No Slinger Speed 1140 rpm Speed Code Single Speed Starting Method Direct on line Thermal Device - Bearing None Thermal Device - Winding Do Not Use Eve-Not Valiid Vibration Sensor Indicator No Vibration Sensor Winding Thermal 1 Automatic Thermal Overload Winding Thermal 1 Location SB Winding Thermal 2 None





Nameplate
CAT.NO. CFM3166A
SPEC. 35K306Y797
HP 1.5 AIR OVER
VOLTS 208-230/460
AMP 5.5-5/2.5
RPM 1140
FRAME 56YZ HZ 60 PH 3
SER.F. 1.15 CODE J DES B CL F
NEMA-NOM-EFF 76 PF 72
RATING 60C AMB-CONT
CC
DE 6203 ODE 6205
ENCL OPAO SN
NP1257L





Performance



General Characteristics

Full Load Torque 6.8 LB-FT Start Configuration DOL
No-Load Current 1.5 Amps Break-Down Torque 22.97 LB-FT
Line-line Res. @ 25°C. 13.7 Ohms A Ph / 0 Ohms B Ph Pull-Up Torque 16.04 LB-FT
Temp. Rise @ Rated Load 54°C Locked-Rotor Torque 20.05 LB-FT
Temp. Rise @ S.F. Load 66°C Starting Current 14.97 Amps

Load Characteristics

% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 35 52 64 73 75 77 78
Efficiency 63.9 75 78 78.5 76.9 74.9 77.6
Speed (RPM) 1183 1168 1152 1133 1110 1084 1120
Line Amperes 1.61 1.8 2.1 2.4 2.91 3.41 2.7



Parts

Product Number

Description

Quantity

SA026294

SA 35K306Y797

1 EA

RA022344

RA 35K306Y797

1 EA

TPMYJ43KR

THERMAL 3PH .75 AUT 135 X

1 EA

RM1001A01

GROMMET "MIDSTATES"

1 EA

11XW0832G06

#8-32 X 3/8, TAPTITE II, HEX WSHR SLTD

1 EA

HA6001A01

THERMAL RETAINER (PLATED)

1 EA

51XW0832A07

8-32 X .44, TAPTITE II, HEX WSHR SLTD SE

2 EA

MG1050G01

CELEROL MEDIUM CHARCOAL METALLIC GRAY

0.017 GA

35EP3210B00

MASTER DE,205 BRG,1.000SH

1 EA

51XW0832A07

8-32 X .44, TAPTITE II, HEX WSHR SLTD SE

2 EA

MJ5004A05

#242-21 LOCTITE GENERAL PURPOSE MED. STR

0.01 EA

HW5100A03

WAVY WASHER (W1543-017)

1 EA

35EP3102B42

PUEP SH THRU HOLE .50 NPT, 2 #26 DRILL F

1 EA

XY1032A02

10-32 HEX NUT DIRECTIONAL SERRATION

4 EA

35CB4500SP

TERMINAL BOX LID STAMPED

1 EA

HA1041A01

CUPPED SLINGER KENCO

1 EA

HW2501D40

KEY, 3/16 SQ X 4.750

1 EA

HA7000A04

KEY RETAINER 0.625 DIA SHAFTS

1 EA

85XU0407S04

4X1/4 U DRIVE PIN STAINLESS

2 EA

10XN2520A06

1/4 20X3/8 HX HD CAP

3 EA

WD1000A16

2-520128-2 AMP FLAG TERMINAL(4M/RL)

12 EA

MJ1000A02

GREASE, POLYREX EM EXXON

0.05 LB

35GS1002A02

GASKET,1/16 THICK NEOPRE.FT.SMITH MADE

1 EA

51XW0832A07

8-32 X .44, TAPTITE II, HEX WSHR SLTD SE

2 EA

SP5079A02

MODEL 35 3PH TERM PANEL CONN 12LD DUAL V

1 EA

HA3100A41

THRUBOLT 10-32 X 10.500

4 EA

LB1118

LABEL,WARNING (ROLL LABEL)

1 EA

LC0007A01

CONN LABEL TYPE M,DV,REV,12LD 2Y/1Y TERM

1 EA

NP1257L

ALUM UL CC THERMAL REV MTG

1 EA

G7PA1000

PKG GRP, PRINT PK1034A06

1 EA

MN416A01

TAG-INSTAL-MAINT no wire (2500bx)4/22

1 EA

FE-0000001

ZRTG FE ASSEMBLY

1 EA
