CFM3146A Baldor Condenser Fan Motor 3/4HP 1140RPM 56YZ OPEN 3 Phase 35K306Y796

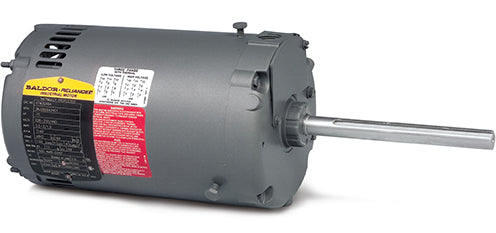

* Image is for reference only

CFM3146A Baldor Condenser Fan Motor 3/4HP 1140RPM 56YZ OPEN 208-230/460 Volt 3 Phase 35K306Y796

SKU: CFM3146A
$625.20
$1,042.00 Sale $625.20

Specification # 35K306Y796

Baldor motor CFM3146A includes a Heavy-Gauge steel base, ball bearings, and is suitable for mounting in any position. Dynamically balanced rotors for reduced vibration and quiet operation.

Square One’s selection of fan motors holds many reliable options for your applications!



Catalog Number CFM3146A Enclosure OPEN Frame 56YZ Frame Material Steel Frequency 60.00 Hz Haz Area Class and Group None Haz Area Division Not Applicable Motor Letter Type Three Phase Output @ Frequency .750 HP @ 60 HZ Phase 3 Synchronous Speed @ Frequency 1200 RPM @ 60 HZ Voltage @ Frequency 208.0 V @ 60 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ Agency Approvals C UR US Ambient Temperature 60 °C Auxillary Box No Auxillary Box Auxillary Box Lead Termination None Base Indicator No Mounting Bearing Grease Type Polyrex EM (-20F +300F) Blower None Current @ Voltage 1.350 A @ 460.0 V
2.600 A @ 208.0 V
2.700 A @ 230.0 V Design Code B Drip Cover No Drip Cover Duty Rating CONT Efficiency @ 100% Load 77.0 % Electrically Isolated Bearing Not Electrically Isolated Feedback Device NO FEEDBACK Front Face Code Standard Front Shaft Indicator None Heater Indicator No Heater High Voltage Full Load Amps 1.4 a Insulation Class F Inverter Code Not Inverter IP Rating NONE KVA Code J Lifting Lugs No Lifting Lugs Locked Bearing Indicator No Locked Bearing Motor Lead Exit Terminal Panel Motor Lead Quantity/Wire Size 12 @ 18 AWG Motor Lead Termination None Motor Standards NEMA Motor Type 3520M Mounting Arrangement F1 Number of Poles 6 Overall Length 15.30 IN Power Factor 67 Product Family General Purpose Pulley End Bearing Type Sealed Bearing Pulley Face Code Other Pulley Shaft Indicator Key And Flat Rodent Screen None Service Factor 1.15 Shaft Diameter 0.625 IN Shaft Extension Location Pulley End Shaft Ground Indicator No Shaft Grounding Shaft Rotation Reversible Shaft Slinger Indicator No Slinger Speed 1160 rpm Speed Code Single Speed Starting Method Direct on line Thermal Device - Bearing None Thermal Device - Winding Do Not Use Eve-Not Valiid Vibration Sensor Indicator No Vibration Sensor Winding Thermal 1 Automatic Thermal Overload Winding Thermal 1 Location SB Winding Thermal 2 None



CAT.NO. CFM3146A
SPEC. 35K306G342
HP .75 AIR OVER
VOLTS 208-230/460
AMP 2.6-2.7/1.35
RPM 1160
FRAME 56YZ HZ 60 PH 3
SER.F. 1.15 CODE J DES B CL F
NEMA-NOM-EFF 77 PF 67
RATING 60C AMB-CONT
CC
DE 6203 ODE 6205
ENCL OPAO SN
SFA 2.92-2.9/1.45
NP1257L





General Characteristics

Full Load Torque 3.35 LB-FT Start Configuration DOL
No-Load Current 0.955 Amps Break-Down Torque 10.18 LB-FT
Line-line Res. @ 25°C. 28.1 Ohms A Ph / 0 Ohms B Ph Pull-Up Torque 7 LB-FT
Temp. Rise @ Rated Load 27°C Locked-Rotor Torque 7.28 LB-FT
Temp. Rise @ S.F. Load 31°C Starting Current 7.43 Amps

Load Characteristics

% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 31 47 60 66 72 75 70
Efficiency 57.4 71.1 76.4 77.7 77.4 77 77.5
Speed (RPM) 1188 1179 1169 1158 1147 1133 1151
Line Amperes 1.01 1.06 1.15 1.34 1.52 1.75 1.45



Product Number

Description

Quantity

SA409937

SA 35K306G342

1 EA

RA401513

RA 35K306G342

1 EA

TPMYJ56WM

THERMAL 3PH 0.75 AUT 135C

1 EA

RM1001A01

GROMMET "MIDSTATES"

1 EA

11XW0832G06

#8-32 X 3/8, TAPTITE II, HEX WSHR SLTD

1 EA

HA6001A01

THERMAL RETAINER (PLATED)

1 EA

51XW0832A07

8-32 X .44, TAPTITE II, HEX WSHR SLTD SE

2 EA

MG1050G01

CELEROL MEDIUM CHARCOAL METALLIC GRAY

0.017 GA

35EP3210B00

MASTER DE,205 BRG,1.000SH

1 EA

51XW0832A07

8-32 X .44, TAPTITE II, HEX WSHR SLTD SE

2 EA

MJ5004A05

#242-21 LOCTITE GENERAL PURPOSE MED. STR

0.01 EA

HW5100A03

WAVY WASHER (W1543-017)

1 EA

35EP3102B42

PUEP SH THRU HOLE .50 NPT, 2 #26 DRILL F

1 EA

XY1032A02

10-32 HEX NUT DIRECTIONAL SERRATION

4 EA

35CB4500SP

TERMINAL BOX LID STAMPED

1 EA

HA1041A01

CUPPED SLINGER KENCO

1 EA

HW2501D40

KEY, 3/16 SQ X 4.750

1 EA

HA7000A04

KEY RETAINER 0.625 DIA SHAFTS

1 EA

85XU0407S04

4X1/4 U DRIVE PIN STAINLESS

2 EA

10XN2520A06

1/4 20X3/8 HX HD CAP

3 EA

MJ1000A02

GREASE, POLYREX EM EXXON

0.05 LB

35GS1002A02

GASKET,1/16 THICK NEOPRE.FT.SMITH MADE

1 EA

51XW0832A07

8-32 X .44, TAPTITE II, HEX WSHR SLTD SE

2 EA

SP5079A02

MODEL 35 3PH TERM PANEL CONN 12LD DUAL V

1 EA

HA3100A56

THRUBOLT 10-32 X 8.625

4 EA

LB1118

LABEL,WARNING (ROLL LABEL)

1 EA

LC0007A01

CONN LABEL TYPE M,DV,REV,12LD 2Y/1Y TERM

1 EA

NP1257L

ALUM UL CC THERMAL REV MTG

1 EA

36PA1000

PKG GRP, PRINT PK1016A06

1 EA

MN416A01

TAG-INSTAL-MAINT no wire (2500bx)4/22

1 EA

WD1000A16

2-520128-2 AMP FLAG TERMINAL(4M/RL)

12 EA

FE-0000001

ZRTG FE ASSEMBLY

1 EA
