CFM3136A Baldor Fan Motor 1/2HP 1140RPM 56YZ OPEN 3 Phase 35K306-6771G1

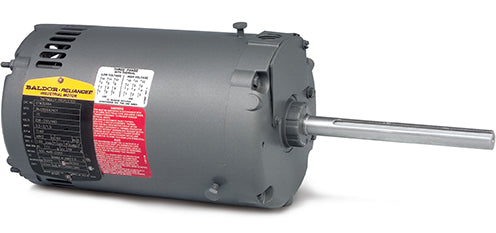

* Image is for reference only

CFM3136A Baldor Fan Motor 1/2HP 1140RPM 56YZ OPEN 208-230/460 Volt 3 Phase 35K306-6771G1

SKU: CFM3136A

$579.00

~~$965.00~~ Sale $579.00

Description
Specs
Nameplate
Performance
Parts

Description

Specification # 35K306-6771G1

Baldor motor CFM3136A includes a Heavy-Gauge steel base, ball bearings, and is suitable for mounting in any position. Dynamically balanced rotors for reduced vibration and quiet operation.

Square One’s selection of fan motors holds many reliable options for your applications!

Specs

Catalog Number CFM3136A Enclosure OPEN Frame 56YZ Frame Material Steel Frequency 60.00 Hz Haz Area Class and Group None Haz Area Division Not Applicable Motor Letter Type Three Phase Output @ Frequency .500 HP @ 60 HZ Phase 3 Synchronous Speed @ Frequency 1200 RPM @ 60 HZ Voltage @ Frequency 208.0 V @ 60 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ Agency Approvals C UR US Ambient Temperature 60 °C Auxillary Box No Auxillary Box Auxillary Box Lead Termination None Base Indicator No Mounting Bearing Grease Type Polyrex EM (-20F +300F) Blower None Current @ Voltage 1.250 A @ 460.0 V
2.100 A @ 208.0 V
2.500 A @ 230.0 V Design Code B Drip Cover No Drip Cover Duty Rating CONT Efficiency @ 100% Load 72.0 % Electrically Isolated Bearing Not Electrically Isolated Feedback Device NO FEEDBACK Front Face Code Standard Front Shaft Indicator None Heater Indicator No Heater High Voltage Full Load Amps 1.3 a Insulation Class F Inverter Code Not Inverter IP Rating NONE KVA Code M Lifting Lugs No Lifting Lugs Locked Bearing Indicator No Locked Bearing Motor Lead Exit Terminal Panel Motor Lead Quantity/Wire Size 12 @ 18 AWG Motor Lead Termination None Motor Standards NEMA Motor Type 3516M Mounting Arrangement F1 Number of Poles 6 Overall Length 15.30 IN Power Factor 54 Product Family General Purpose Pulley End Bearing Type Sealed Bearing Pulley Face Code Other Pulley Shaft Indicator Key And Flat Rodent Screen None Service Factor 1.15 Shaft Diameter 0.625 IN Shaft Extension Location Pulley End Shaft Ground Indicator No Shaft Grounding Shaft Rotation Reversible Shaft Slinger Indicator No Slinger Speed 1175 rpm Speed Code Single Speed Starting Method Direct on line Thermal Device - Bearing None Thermal Device - Winding Do Not Use Eve-Not Valiid Vibration Sensor Indicator No Vibration Sensor Winding Thermal 1 Automatic Thermal Overload Winding Thermal 1 Location SB Winding Thermal 2 None

Nameplate

CAT.NO.	CFM3136A
SPEC.	35K306G344G1
HP	.5
VOLTS	208-230/460
AMP	2.1-2.5/1.25
RPM	1175
FRAME	56YZ						HZ	60				PH	3
SER.F.	1.15	CODE				M	DES		B	CL	F
NEMA-NOM-EFF	72		PF		54
RATING	60C AMB-CONT
CC
DE	6203			ODE			6205
ENCL	OPEN	SN
	SFA 2.24-2.6/1.3
	NP1257L

Performance

General Characteristics

Full Load Torque	2.31 LB-FT	Start Configuration	DOL
No-Load Current	1.1 Amps	Break-Down Torque	9.11 LB-FT
Line-line Res. @ 25°C.	36.7 Ohms A Ph / 0 Ohms B Ph	Pull-Up Torque	5.52 LB-FT
Temp. Rise @ Rated Load		Locked-Rotor Torque	5.87 LB-FT
Temp. Rise @ S.F. Load		Starting Current	6.83 Amps

Load Characteristics

% of Rated Load	25	50	75	100	125	150	S.F.
Power Factor	23	35	45	54	61	67	58
Efficiency	46.4	61.8	68.9	72.7	74.2	74.3	73.6
Speed (RPM)	1193	1188	1182	1177	1171	1164	1173
Line Amperes	1.1	1.13	1.16	1.24	1.32	1.41	1.29

Parts

Product Number	Description	Quantity
SA409935	SA 35K306G344G1	1 EA
RA401511	RA 35K306G344G1	1 EA
TPMYJ66KX	THERMAL 3PH 0.75 AUT 120C	1 EA
RM1001A01	GROMMET "MIDSTATES"	1 EA
11XW0832G06	#8-32 X 3/8, TAPTITE II, HEX WSHR SLTD	1 EA
HA6001A01	THERMAL RETAINER (PLATED)	1 EA
51XW0832A07	8-32 X .44, TAPTITE II, HEX WSHR SLTD SE	2 EA
MG1050G01	CELEROL MEDIUM CHARCOAL METALLIC GRAY	0.017 GA
35EP3210B00	MASTER DE,205 BRG,1.000SH	1 EA
51XW0832A07	8-32 X .44, TAPTITE II, HEX WSHR SLTD SE	2 EA
MJ5004A05	#242-21 LOCTITE GENERAL PURPOSE MED. STR	0.01 EA
HW5100A03	WAVY WASHER (W1543-017)	1 EA
35EP3102B42	PUEP SH THRU HOLE .50 NPT, 2 #26 DRILL F	1 EA
XY1032A02	10-32 HEX NUT DIRECTIONAL SERRATION	4 EA
35CB4500SP	TERMINAL BOX LID STAMPED	1 EA
HA1041A01	CUPPED SLINGER KENCO	1 EA
HW2501D40	KEY, 3/16 SQ X 4.750	1 EA
HA7000A04	KEY RETAINER 0.625 DIA SHAFTS	1 EA
85XU0407S04	4X1/4 U DRIVE PIN STAINLESS	2 EA
10XN2520A06	1/4 20X3/8 HX HD CAP	3 EA
WD1000A16	2-520128-2 AMP FLAG TERMINAL(4M/RL)	12 EA
MJ1000A02	GREASE, POLYREX EM EXXON	0.05 LB
35GS1002A02	GASKET,1/16 THICK NEOPRE.FT.SMITH MADE	1 EA
51XW0832A07	8-32 X .44, TAPTITE II, HEX WSHR SLTD SE	2 EA
SP5079A02	MODEL 35 3PH TERM PANEL CONN 12LD DUAL V	1 EA
HA3100A56	THRUBOLT 10-32 X 8.625	4 EA
LB1118	LABEL,WARNING (ROLL LABEL)	1 EA
LC0007A01	CONN LABEL TYPE M,DV,REV,12LD 2Y/1Y TERM	1 EA
NP1257L	ALUM UL CC THERMAL REV MTG	1 EA
36PA1000	PKG GRP, PRINT PK1016A06	1 EA
MN416A01	TAG-INSTAL-MAINT no wire (2500bx)4/22	1 EA
FE-0000001	ZRTG FE ASSEMBLY	1 EA
