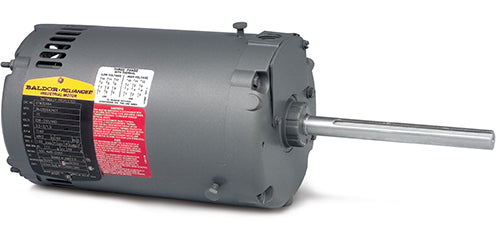

CFM3046A Baldor Condenser Fan Motor 3/4HP 1140RPM 48YZ OPEN 3 Phase 34J280X426G1

* Image is for reference only

CFM3046A Baldor Condenser Fan Motor 3/4HP 1140RPM 48YZ OPEN 208-230/460 Volt 3 Phase 34J280X426G1

SKU: CFM3046A
$638.53
$1,011.00 Sale $638.53
Description

Baldor motor designed specifically for use on commercial refrigeration condenser units and air conditioning units.

Baldor Motor Parts, Diagrams and Specs Available!

Specification # 34J280X426G1

Specs
Catalog Number CFM3046A Enclosure ODP Frame 48YZ Frame Material Steel Frequency 60.00 Hz Haz Area Class and Group None Haz Area Division Not Applicable Motor Letter Type Three Phase Output @ Frequency .750 HP @ 60 HZ Phase 3 Synchronous Speed @ Frequency 1200 RPM @ 60 HZ Voltage @ Frequency 208.0 V @ 60 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ Agency Approvals CURUS Ambient Temperature 40 °C Auxillary Box No Auxillary Box Auxillary Box Lead Termination None Base Indicator Rigid Bearing Grease Type Polyrex EM (-20F +300F) Blower None Current @ Voltage 1.500 A @ 460.0 V
3.000 A @ 230.0 V
3.300 A @ 208.0 V
3.600 A @ 208.0 V Design Code B Drip Cover No Drip Cover Duty Rating CONT Efficiency @ 100% Load 77.0 % Electrically Isolated Bearing Not Electrically Isolated Feedback Device NO FEEDBACK Front Face Code Standard Front Shaft Indicator None Heater Indicator No Heater High Voltage Full Load Amps 1.5 a Insulation Class B Inverter Code Not Inverter KVA Code K Lifting Lugs No Lifting Lugs Locked Bearing Indicator No Locked Bearing Motor Lead Exit Terminal Panel Or Lead Hole Motor Lead Quantity/Wire Size 12 @ 18 AWG Motor Lead Termination Flying Leads Motor Standards NEMA Motor Type 3428M Mounting Arrangement F3 Number of Poles 6 Overall Length 16.02 IN Power Factor 59 Product Family General Purpose Pulley End Bearing Type Ball Pulley Face Code Other Pulley Shaft Indicator Key And Flat Rodent Screen None Service Factor 1.00 Shaft Diameter 0.625 IN Shaft Extension Location Pulley End Shaft Ground Indicator No Shaft Grounding Shaft Rotation Reversible Shaft Slinger Indicator No Slinger Speed 1140 rpm Speed Code Single Speed Starting Method Direct on line Thermal Device - Bearing None Thermal Device - Winding None Vibration Sensor Indicator No Vibration Sensor Winding Thermal 1 Automatic Thermal Overload Winding Thermal 1 Location SB Winding Thermal 2 None



Nameplate



CAT.NO. CFM3046A
SPEC. 34J280X426G1
HP .75
VOLTS 208-230/460
AMP 3.3-3/1.5
RPM 1140
FRAME 48YZ HZ 60 PH 3
SER.F. 1.00 CODE K DES B CL F
NEMA-NOM-EFF 77 PF 59
RATING 60C AMB-CONT
CC
DE 6203 ODE 6203
ENCL OPEN SN
NP1257L
Performance

General Characteristics

Full Load Torque 3.4 LB-FT Start Configuration DOL
No-Load Current 1.1 Amps Break-Down Torque 11.8 LB-FT
Line-line Res. @ 25°C. 21.9 Ohms A Ph / 0 Ohms B Ph Pull-Up Torque 9.3 LB-FT
Temp. Rise @ Rated Load Locked-Rotor Torque 9.7 LB-FT
Temp. Rise @ S.F. Load Starting Current 7.4 Amps

Load Characteristics

% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 26 40 51 59 65 68 0
Efficiency 60 72 76 77 75 73 0
Speed (RPM) 1185 1170 1155 1135 1115 1095 0
Line Amperes 1.1 1.2 1.4 1.5 1.7 2 0



Parts

Product Number

Description

Quantity

SA080922

SA 34J280X426G1

1 EA

RA074308

RA 34J280X426G1

1 EA

TPMYJ64KX

THERMAL 3PH 0.75 AUT 120C

1 EA

SP1000A09

TERM BOARD, MODEL 34 SW, (RPL SP1000A01)

1 EA

34EP3200A01SP

FR ENDPLATE, MACH

1 EA

MJ5004A05

#242-21 LOCTITE GENERAL PURPOSE MED. STR

0.01 EA

HW5100A03

WAVY WASHER (W1543-017)

1 EA

34EP3204B18

FR/PU ENDPLATE, MACH 17 FRAME W/.5 NPT L

1 EA

HA6001A01

THERMAL RETAINER (PLATED)

1 EA

NS2500A01

INSULATOR, AUTO THER PROT

1 EA

51XB1214A10

12-14 X 5/8HX WS SL SR TYBX

2 EA

XY1032A02

10-32 HEX NUT DIRECTIONAL SERRATION

4 EA

HW2501D41

KEY, 3/16 SQ. X 4.875 TDR#90959 AUTO

1 EA

HA7000A04

KEY RETAINER 0.625 DIA SHAFTS

1 EA

34CB4501SP

TERMINAL BOX LID, STAMPED X (PLATED)

1 EA

34GS1018

GASKET, TERM PLATE LID BLACK NEOPRENE

1 EA

51XW0832A07

8-32 X .44, TAPTITE II, HEX WSHR SLTD SE

2 EA

51XW0832A07

8-32 X .44, TAPTITE II, HEX WSHR SLTD SE

1 EA

51XW0832A07

8-32 X .44, TAPTITE II, HEX WSHR SLTD SE

2 EA

RM1001A01

GROMMET "MIDSTATES"

1 EA

HA1041A01

CUPPED SLINGER KENCO

1 EA

10XN2520A06

1/4 20X3/8 HX HD CAP

3 EA

MG1050G01

CELEROL MEDIUM CHARCOAL METALLIC GRAY

0.014 GA

85XU0407S04

4X1/4 U DRIVE PIN STAINLESS

2 EA

HA3100A18

THRUBOLT 10-32 X 9.250

4 EA

MN416A01

TAG-INSTAL-MAINT no wire (2500bx)4/22

1 EA

LB1118

LABEL,WARNING (ROLL LABEL)

1 EA

LC0007

CONNECTION LABEL

1 EA

NP1257L

ALUM UL CC THERMAL REV MTG

1 EA

35PA1007

PKG GRP, PRINT PK1034A06

1 EA

PK3083

STYROFOAM PACKING CRADLE

1 EA

PK3085X

FOAM SHAFT SUPPORT PRECUT 4-1/4 X 6-3/4

1 EA

PK3088

MICROFOAM, 8"X"8 PERF. SHEETS

1 EA
