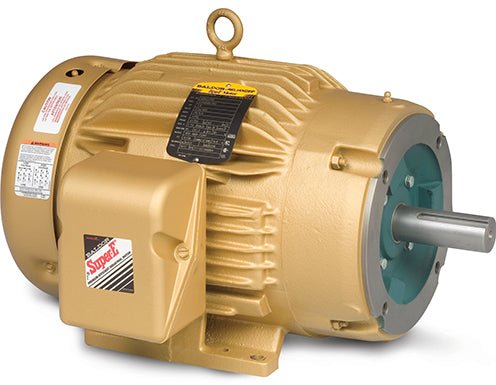

* Image is for reference only

CEM3664T Baldor Motor 2HP 1200RPM 184TC TEFC 230/460 Volt 3 Phase 06F057W970G1

SKU: CEM3664T
Sale
Description

Specification # 06F057W970G1

Baldor CEM3664T Motor is a reliable motor that is used for Fans, Pumps, Blowers, Conveyors, Compressors, Industrial Machines, Other General Purpose Applications.  Baldor motors and parts are sturdy and energy efficient.

Baldor CEM3664T Motor features include:

• Locked DE bearing to allow mounting in any configuration

• 60 Hz designs with 50 Hz information on 2,4,6 Pole 1-125 Hp ratings

• Suitable for Inverter use per NEMA MG1 Part 31.4.4.2

• Simple F1 to F2 conversion on cast iron frames

• Designed for longevity with a 3 year warranty on premium efficient Super-E® Motors

Specs
Catalog NumberCEM3664T EnclosureTEFC Frame184TC Frame MaterialCast Iron Frequency60.00 Hz Haz Area Class and GroupNone Haz Area DivisionNot Applicable Motor Letter TypeThree Phase Output @ Frequency2.000 HP @ 60 HZ Phase3 Synchronous Speed @ Frequency1200 RPM @ 60 HZ Voltage @ Frequency460.0 V @ 60 HZ
230.0 V @ 60 HZ Agency ApprovalsCURUSEEV
NEMA_PREMIUM Ambient Temperature40 °C Auxillary BoxNo Auxillary Box Auxillary Box Lead TerminationNone Base IndicatorRigid Bearing Grease TypePolyrex EM (-20F +300F) BlowerNone Current @ Voltage6.300 A @ 230.0 V
6.600 A @ 208.0 V
3.150 A @ 460.0 V Design CodeB Drip CoverNo Drip Cover Duty RatingCONT Efficiency @ 100% Load88.5 % Electrically Isolated BearingNot Electrically Isolated Feedback DeviceNO FEEDBACK Front Face CodeStandard Front Shaft IndicatorNone Heater IndicatorNo Heater High Voltage Full Load Amps3.2 a Insulation ClassF Inverter CodeInverter Ready KVA CodeK Lifting LugsStandard Lifting Lugs Locked Bearing IndicatorLocked Bearing Motor Lead ExitKo Box Motor Lead Quantity/Wire Size9 @ 16 AWG Motor Lead TerminationFlying Leads Motor StandardsNEMA Motor Type0642M Mounting ArrangementF1 Number of Poles6 Overall Length15.98 IN Power Factor68 Product FamilyGeneral Purpose Pulley End Bearing TypeBall Pulley Face CodeC-Face Pulley Shaft IndicatorStandard Rodent ScreenNone Service Factor1.15 Shaft Diameter1.125 IN Shaft Extension LocationPulley End Shaft Ground IndicatorNo Shaft Grounding Shaft RotationReversible Shaft Slinger IndicatorNo Slinger Speed1165 rpm Speed CodeSingle Speed Starting MethodDirect on line Thermal Device - BearingNone Thermal Device - WindingNone Vibration Sensor IndicatorNo Vibration Sensor Winding Thermal 1None Winding Thermal 2None
Nameplate
CAT.NO. CEM3664T
SPEC 06F057W970G1
HP 2
VOLTS 230/460
AMPS 6.3/3.15
RPM 1165
FRAME 184TC HZ 60 PH 3
SF 1.15 CODE K DES B CLASS F
NEMA NOM. EFF 88.5 PF 68
RATING 40C AMB-CONT
CC 010A
ENCL TEFC SER
DE 6206 ODE 6205
VPWM INVERTER READY SFA 7/3.5
CT6-60H(10:1)VT3-60H(20:1
50HZ 2HP 190/380V 7.4/3.7A SF1.0
NP3441LUA
