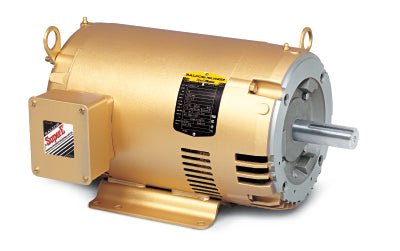

CEM3311T Baldor Motor 7.5HP 1800RPM 213TC OPSB 230/460 Volt 3 Phase 37B102L863G1

Spec # 37B102L863G1

Baldor General Purpose Motors used on Pumps, fans, conveyors, machine tool, gear reducers

Baldor Motor Parts, Diagrams and Specs Available!

Catalog Number    CEM3311T
Enclosure    ODP
Frame    213TC
Frame Material    Steel
Frequency    60.00 Hz
Haz Area Class and Group    None
Haz Area Division    Not Applicable
Motor Letter Type    Three Phase
Output @ Frequency    7.500 HP @ 60 HZ
Phase    3
Synchronous Speed @ Frequency    1800 RPM @ 60 HZ
Voltage @ Frequency    460.0 V @ 60 HZ
230.0 V @ 60 HZ
Agency Approvals    CURUSEEV
NEMA_PREMIUM
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    Rigid
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    None
Current @ Voltage    20.600 A @ 208.0 V
9.800 A @ 460.0 V
19.600 A @ 230.0 V
Design Code    A
Drip Cover    No Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    91.0 %
Electrically Isolated Bearing    Not Electrically Isolated
Feedback Device    NO FEEDBACK
Front Face Code    Standard
Front Shaft Indicator    None
Heater Indicator    No Heater
High Voltage Full Load Amps    9.8 a
Insulation Class    F
Inverter Code    Inverter Ready
IP Rating    NONE
KVA Code    J
Lifting Lugs    Standard Lifting Lugs
Locked Bearing Indicator    Locked Bearing
Motor Lead Exit    Ko Box
Motor Lead Quantity/Wire Size    9 @ 14 AWG
Motor Lead Termination    Flying Leads
Motor Standards    NEMA
Motor Type    3734M
Mounting Arrangement    F1
Number of Poles    4
Overall Length    17.07 IN
Power Factor    79
Product Family    General Purpose
Pulley End Bearing Type    Ball
Pulley Face Code    C-Face
Pulley Shaft Indicator    Standard
Rodent Screen    None
Service Factor    1.15
Shaft Diameter    1.375 IN
Shaft Extension Location    Pulley End
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Shaft Slinger Indicator    No Slinger
Speed    1770 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    None
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None
