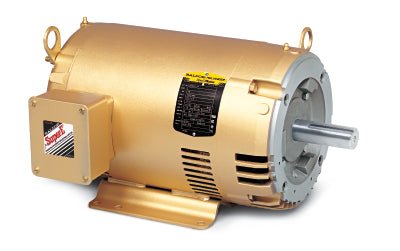

CEM2532T Baldor Motor 25HP 1200RPM 324TC OPSB 230/460 Volt 3 Phase 40-0000784

Specification # 40-0000784

Applications: Fans·Pumps·Blowers·Conveyors·Compressors·Industrial machines·Other general purpose applications

Features:

• Locked DE bearing to allow mounting in any configuration
• Suitable for inverter use per NEMA MG1 Part 4.4.2
• 60 Hz designs with 50 Hz information
• Designed for longevity with a 3 year warranty on premium efficient Super-E® motors
• Optimized airflow design providing higher horsepower in a smaller package

Catalog Number    CEM2532T
Enclosure    ODP
Frame    324TC
Frame Material    Steel
Frequency    60.00 Hz
Motor Letter Type    Three Phase
Output @ Frequency    25.000 HP @ 60 HZ
Phase    3
Synchronous Speed @ Frequency    1200 RPM @ 60 HZ
Voltage @ Frequency    230.0 V @ 60 HZ
460.0 V @ 60 HZ
Agency Approvals    CURUSEEV
NEMA_PREMIUM
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    Rigid
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    None
Current @ Voltage    34.000 A @ 460.0 V
68.000 A @ 230.0 V
70.000 A @ 208.0 V
Design Code    A
Drip Cover    No Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    93.0 %
Electrically Isolated Bearing    Not Electrically Isolated
Feedback Device    NO FEEDBACK
Heater Indicator    No Heater
High Voltage Full Load Amps    34.0 a
Insulation Class    F
Inverter Code    Inverter Ready
IP Rating    NONE
KVA Code    J
Lifting Lugs    Standard Lifting Lugs
Locked Bearing Indicator    Locked Bearing
Motor Lead Termination    Flying Leads
Motor Standards    NEMA
Motor Type    4072M
Mounting Arrangement    F1
Number of Poles    6
Overall Length    27.69 IN
Power Factor    76
Product Family    General Purpose
Pulley Face Code    C-Face
Rodent Screen    None
Service Factor    1.15
Shaft Diameter    2.125 IN
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Speed    1180 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    None
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None
