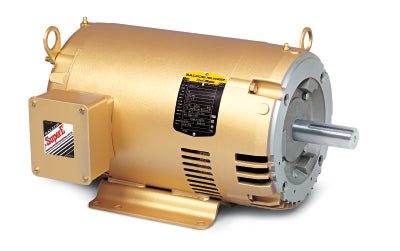

CEM2506T Baldor Motor 7.5HP 1200RPM 254TC OPSB 230/460 Volt 3 Phase 39-0000786

Specification # 39-0000786

Applications:·Fans·Pumps·Blowers·Conveyors·Compressors·Industrial machines·Other general purpose applications

Features:

• Locked DE bearing to allow mounting in any configuration
• Suitable for inverter use per NEMA MG1 Part 4.4.2
• 60 Hz designs with 50 Hz information
• Designed for longevity with a 3 year warranty on premium efficient Super-E® motors
• Optimized airflow design providing higher horsepower in a smaller package

Catalog Number    CEM2506T
Enclosure    ODP
Frame    254TC
Frame Material    Steel
Frequency    60.00 Hz
Haz Area Class and Group    None
Haz Area Division    Not Applicable
Motor Letter Type    Three Phase
Output @ Frequency    7.500 HP @ 60 HZ
Phase    3
Synchronous Speed @ Frequency    1200 RPM @ 60 HZ
Voltage @ Frequency    230.0 V @ 60 HZ
460.0 V @ 60 HZ
Agency Approvals    NEMA_PREMIUM
CURUSEEV
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    Rigid
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    None
Current @ Voltage    11.000 A @ 460.0 V
22.400 A @ 230.0 V
Design Code    A
Drip Cover    No Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    90.2 %
Electrically Isolated Bearing    Not Electrically Isolated
Feedback Device    NO FEEDBACK
Heater Indicator    No Heater
High Voltage Full Load Amps    11.0 a
Insulation Class    F
Inverter Code    Inverter Ready
IP Rating    NONE
KVA Code    H
Lifting Lugs    Standard Lifting Lugs
Locked Bearing Indicator    Locked Bearing
Motor Lead Termination    Flying Leads
Motor Standards    NEMA
Motor Type    3950M
Mounting Arrangement    F1
Number of Poles    6
Overall Length    23.19 IN
Power Factor    70
Product Family    General Purpose
Pulley Face Code    C-Face
Rodent Screen    None
Service Factor    1.15
Shaft Diameter    1.625 IN
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Speed    1180 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    None
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None
