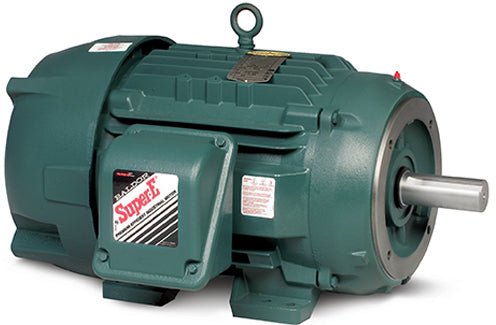

CECP4106T Baldor Motor 20HP 3600RPM 256TC TEFC 230/460 Volt 3 Phase 09J540Y799G1

Baldor Severe Duty Totally Enclosed Fan Cooled Motors used for Typical applications include Petro-Chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operating conditions

Baldor Motor Parts, Diagrams and Specs Available!

Specification # 09H180Y583G1

Catalog Number    CECP4106T
Enclosure    TEFC
Frame    256TC
Frame Material    Cast Iron
Frequency    60.00 Hz
Haz Area Class and Group    CLI GP A,B,C,D
Haz Area Division    Division II
Motor Letter Type    Three Phase
Output @ Frequency    20.000 HP @ 60 HZ
Phase    3
Synchronous Speed @ Frequency    3600 RPM @ 60 HZ
Voltage @ Frequency    460.0 V @ 60 HZ
230.0 V @ 60 HZ
Agency Approvals    CCSA US
CSA EEV
NEMA_PREMIUM
UR
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    Rigid
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    None
Constant Torque Speed Range    6
Current @ Voltage    48.000 A @ 208.0 V
44.000 A @ 230.0 V
22.000 A @ 460.0 V
Design Code    A
Drip Cover    No Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    91.7 %
Electrically Isolated Bearing    Not Electrically Isolated
Enclosure Modification    Severe Duty Features
Feedback Device    NO FEEDBACK
Front Face Code    Standard
Front Shaft Indicator    None
Haz Area Temp Code    T3
Heater Indicator    No Heater
High Voltage Full Load Amps    22.0 a
Insulation Class    F
Inverter Code    Inverter Duty
KVA Code    J
Lifting Lugs    Standard Lifting Lugs
Locked Bearing Indicator    Locked Bearing
Max Speed    5400 rpm
Motor Lead Exit    Ko Box
Motor Lead Quantity/Wire Size    9 @ 12 AWG
Motor Lead Termination    Flying Leads
Motor Standards    NEMA
Motor Type    0944M
Mounting Arrangement    F1
Number of Poles    2
Overall Length    25.28 IN
Power Factor    92
Product Family    Super-E Chemical Processing
Pulley End Bearing Type    Ball
Pulley Face Code    C-Face
Pulley Shaft Indicator    Standard
Rodent Screen    None
Service Factor    1.15
Shaft Diameter    1.625 IN
Shaft Extension Location    Pulley End
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Shaft Slinger Indicator    Shaft Slinger
Speed    3540 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    None
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None
