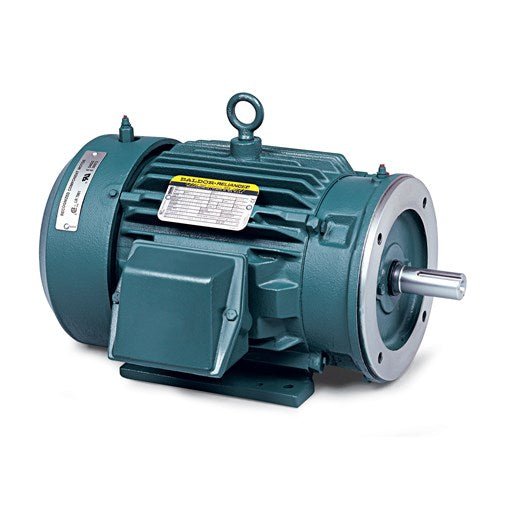

CECP4104T Baldor Motor 30HP 1765RPM 286TC TEFC 230/460 Volt 3 Phase 10H412Z506G1

Baldor Severe Duty Totally Enclosed Fan Cooled Motors used for Typical applications include Petro-Chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operating conditions

Baldor Motor Parts, Diagrams and Specs Available!

Specification # 10G297X207G1

Catalog Number    CECP4104T
Enclosure    TEFC
Frame    286TC
Frame Material    Cast Iron
Frequency    60.00 Hz
Haz Area Class and Group    CLI GP A,B,C,D
Haz Area Division    Division II
Motor Letter Type    Three Phase
Output @ Frequency    30.000 HP @ 60 HZ
Phase    3
Synchronous Speed @ Frequency    1800 RPM @ 60 HZ
Voltage @ Frequency    460.0 V @ 60 HZ
230.0 V @ 60 HZ
Agency Approvals    NEMA_PREMIUM
UR
CSA EEV
CCSA US
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    Rigid
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    None
Constant Torque Speed Range    1.0
Current @ Voltage    36.000 A @ 460.0 V
72.000 A @ 230.0 V
Design Code    B
Drip Cover    No Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    93.6 %
Electrically Isolated Bearing    Not Electrically Isolated
Enclosure Modification    Severe Duty Features
Feedback Device    NO FEEDBACK
Front Face Code    Standard
Front Shaft Indicator    None
Haz Area Temp Code    T3C
Heater Indicator    No Heater
High Voltage Full Load Amps    36.0 a
Insulation Class    F
Inverter Code    Inverter Duty
KVA Code    G
Lifting Lugs    Standard Lifting Lugs
Locked Bearing Indicator    Locked Bearing
Max Speed    2700 rpm
Motor Lead Exit    Ko Box
Motor Lead Quantity/Wire Size    9 @ 10 AWG
Motor Lead Termination    Flying Leads
Motor Standards    NEMA
Motor Type    1060M
Mounting Arrangement    F1
Number of Poles    4
Overall Length    28.00 IN
Power Factor    84
Product Family    Super-E Chemical Processing
Pulley End Bearing Type    Ball
Pulley Face Code    C-Face
Pulley Shaft Indicator    Standard
Rodent Screen    None
Service Factor    1.15
Shaft Diameter    1.875 IN
Shaft Extension Location    Pulley End
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Shaft Slinger Indicator    Shaft Slinger
Speed    1770 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    None
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None
