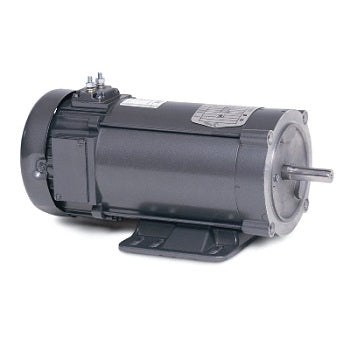

CDP3440-V24 Baldor Motor 3/4HP 1800RPM 56C TEFC 24 Volt DC 34-6893Z611

Features:
• NEMA C-Face
• Class F insulation
• Double sealed ball bearings
• Top mounted terminal studs for power connection on ratings 40-amps and up

Applications:
• Battery operation for portable pumps
• Fans
• Augers
• Winches
• Lifts

Armature Voltage    24 V
Base Speed    1800 rpm
Enclosure    TEFC
Frame    56C
Frame Material    Steel
Haz Area Class and Group    None
Output Power    0.750 HP
Agency Approvals    CSA
UR
Ambient Temperature    40 °C
Armature Current    29.4 a
Armature Inertia    8.264 lb-ft2
Base Indicator    Rigid
Bearing Grease Type    Polyrex EM (-20F +300F)
Drip Cover    No Drip Cover
Duty Rating    CONT
Feedback Device    NO FEEDBACK
Haz Area Division    Not Applicable
Heater Indicator    No Heater
Insulation Class    H
Lifting Lugs    No Lifting Lugs
Motor Lead Exit    Ko Box
Motor Lead Quantity/Wire Size    2 @ 12 AWG
Motor Lead Termination    Flying Leads
Motor Standards    NEMA
Mounting Arrangement    F1
Overall Length    14.51 IN
Product Family    General Purpose
Pulley End Bearing Type    Sealed Bearing
Service Factor    1.00
Shaft Diameter    0.625 IN
Shaft Extension Location    Pulley End
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Shaft Slinger Indicator    No Slinger
