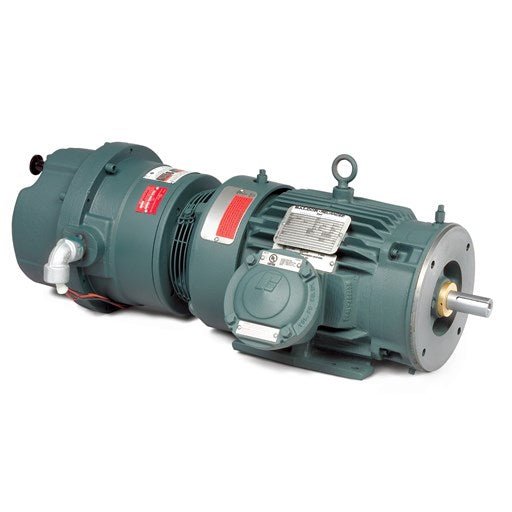

* Image is for reference only

CBXM18342T Baldor Motor 3HP 1800RPM L182TC XPNV 230/460 Volt 3 Phase

SKU: CBXM18342T
Sale
Description

This item replaces CEBM7142T

Baldor Brake Motors used on Machine tools, conveyors, door operators, speed reducers, any application requiring quick stops and hold

Specs
Catalog NumberCBXM18342T EnclosureTEFC Frame182TC Frame MaterialCast Iron Frequency50.00 Hz
60.00 Hz Haz Area Class and GroupCLI GP D; CLII GP F,G Haz Area DivisionDivision I Motor Letter TypeThree Phase Output @ Frequency2.000 HP @ 50 HZ
3.000 HP @ 60 HZ Phase3 Synchronous Speed @ Frequency1800 RPM @ 60 HZ Voltage @ Frequency380.0 V @ 50 HZ
230.0 V @ 60 HZ
190.0 V @ 50 HZ
460.0 V @ 60 HZ Agency ApprovalsCSA EEV
UL Ambient Temperature40 °C Auxillary BoxNo Auxillary Box Auxillary Box Lead TerminationNone Base IndicatorRigid Bearing Grease TypePolyrex EM (-20F +300F) BlowerNone Constant Torque Speed Range6 Current @ Voltage8.200 A @ 230.0 V
7.000 A @ 190.0 V
4.100 A @ 460.0 V
3.500 A @ 380.0 V Design CodeB Drip CoverNo Drip Cover Duty RatingCONT Efficiency @ 100% Load89.5 % Electrically Isolated BearingNot Electrically Isolated Feedback DeviceNO FEEDBACK Haz Area Temp CodeT3C Heater IndicatorNo Heater High Voltage Full Load Amps3.5 a Insulation ClassF Inverter CodeInverter Duty IP RatingNONE KVA CodeJ Lifting LugsStandard Lifting Lugs Locked Bearing IndicatorLocked Bearing Max Speed2700 rpm Motor Lead TerminationFlying Leads Motor StandardsNEMA Motor Type0632M Mounting ArrangementF1 Number of Poles4 Overall Length27.20 IN Power Factor77 Product FamilyGeneral Purpose Pulley Face CodeC-Face Rodent ScreenNone Service Factor1.00 Shaft Diameter1.125 IN Shaft Ground IndicatorNo Shaft Grounding Shaft RotationReversible Speed1755 rpm Speed CodeSingle Speed Starting MethodDirect on line Thermal Device - BearingNone Thermal Device - WindingNormally Closed Thermostat Vibration Sensor IndicatorNo Vibration Sensor Winding Thermal 1None Winding Thermal 2None
Nameplate
NO. CC 010A
S/N TEMP CODE T3C
SPEC. 06-0000-0915 INV.TYPE PWM
CAT.NO. CBXM18342T C HP FR 60 C HP TO 90
HP 3//2 CT HZ FROM 6 CT HZ TO 60
VOLTS 230/460//190/380 VT HZ FROM 6 VT HZ TO 60
AMPS 8.2/4.1//7/3.5 MAG CUR 4.2/2.1
RPM 1755//1465 MX RPM 2700
HZ 60//50 PH 3 CL F NOM.EFF. 89.5
SER.F. 1.00 DES B SL HZ 1.5 WK2 0.3
FRAME 182TC RATING 40C AMB-CONT
1.15 SF ON SINE WAVE


Performance

Performance Data at

 (Typical performance - Not guaranteed values)

General Characteristics

Full Load Torque 9.08 LB-FT Start Configuration DOL
No-Load Current 2.14 Amps Break-Down Torque 33.1 LB-FT
Line-line Res. @ 25°C. 3.93 Ohms A Ph / 0 Ohms B Ph Pull-Up Torque 18.2 LB-FT
Temp. Rise @ Rated Load 35°C Locked-Rotor Torque 20.4 LB-FT
Temp. Rise @ S.F. Load 42°C Starting Current 29.8 Amps

Load Characteristics

% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 38 58 70 77 81 83 0
Efficiency 83.5 88.9 90 89.8 89.1 87.7 0
Speed (RPM) 1790 1779 1769 1757 1744 1730 0
Line Amperes 2.34 2.79 3.39 4.1 4.91 5.86 0



Parts
Product Number Description Quantity
SA393551 SA 06-0000-0915 1 EA
RA384204
RA 06-0000-0915 1 EA
LB1624
COMBINED WARNING LABEL, ISO/ANSI PICTOGR 1 EA
LC0145B01
CONNECTION LABEL 1 EA
NP0887XPSLEV
SS XP INV UL CSA-EEV CC CL-I GP-D 1 EA
85XU0407S04
4X1/4 U DRIVE PIN STAINLESS 2 EA
85XU0407S04
4X1/4 U DRIVE PIN STAINLESS 4 EA
MN416A01
TAG-INSTAL-MAINT no wire (2500bx)4/22 1 EA
LB1081F
ALUM XP CAUTION LABEL (FS PLANT ONLY- 1 EA
HW3201A05
3/8-16 EYEBOLT 1 EA
06FH1007A01
FAN COVER, USE W/06EP1713 1 EA
HA1100A06
SCREEN, RODENT 1 EA
HW1001A31
LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4 EA
10XN3118K40
5/16-18 X 2.75" HEX HD, GRADE 5 4 EA
36FN3000C01SP
EXFN, PLASTIC, 5.25 OD, .912 ID 1 EA
51XB1214A16
12-14X1.00 HXWSSLD SERTYB 1 EA
MJ1000A02
GREASE, POLYREX EM EXXON 0.05 LB
06EP1713A01
FREP XP 205 BRG, W/GRSR, USE W/06FH1007 1 EA
10XN3118K20
5/16-18 X 1 1/4 GRADE 5 STEEL ZC PLATED 4 EA
HW1001A31
LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4 EA
HW5100A05
WVY WSHR F/205 & 304 BRGS 1 EA
HW4500A19
1/4-28X1/4 SLOTTED PLUG F/S 2 EA
13XT0832A07
8-32X7/16 TYP 23 PAN HD SLT DX 4 EA
06EP1712A13
PUEP 182-4TC XP 206 BRG W/GRSR 1 EA
HW1001A31
LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4 EA
10XN3118K20
5/16-18 X 1 1/4 GRADE 5 STEEL ZC PLATED 4 EA
51XN1032A24
10-32 X 1 1/2 HX WS SL SR 4 EA
HW4500A19
1/4-28X1/4 SLOTTED PLUG F/S 2 EA
07CB1000A02
CONDUIT BOX, MODEL 306,EXP. PROOF 1 EA
10XN2520A14
1/4 20X7/8 HX HD CAP 4 EA
HW1001A25
LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4 EA
WD1000B17
T&B CX35TN OR L35P TERMINAL LUG 1 EA
11XW1032G06
10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1 EA
07CB1502A01
CONDUIT BOX LID MACH (DUCTILE IRON) 1 EA
10XN2520K16
1/4-20 X 1" HX HD SCRW GRADE 5, ZINC P 4 EA
HW1001A25
LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4 EA
65BK6137DQB
1-065-361-09-DQB BRAKE 1 EA
84XN3816J20
3/8-16 X 1 1/4 SOC HD CAP SCREW,BLK OXID 4 EA
HW2501D22
KEY, 3/16 SQ X 2.500 1 EA
MG1500Y02
WILKOPON PRIMER YELLOW 0.022 GA
MG1025G29
WILKOFAST, 789.229, DARK CHARCOAL GRAY 0.022 GA
37PA1039
PALLET PACK GROUP, BLANK PK1148 1 EA
HW2501E16
KEY, 1/4 SQ X 1.750 1 EA
HA7000A02
KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1 EA
