AOM3714T Baldor Motor 10HP 1770RPM 215T TENV 3 Phase 37F359S275H1

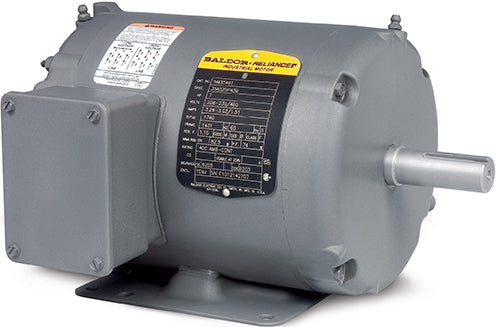

* Image is for reference only

AOM3714T Baldor Motor 10HP 1770RPM 215T TENV 208-230/460 Volt 3 Phase 37F359S275H1

SKU: AOM3714T
$1,196.21
$1,894.00 Sale $1,196.21
Description

Features:
• 36” long leads for ease of connectivity
• Oversized ball bearings for large overhung load from shaft mounted fans
• Locked DE bearing to allow mounting in any configuration

Applications:
• Fans
• Pumps
• Blowers
• Condensers
• Air handling
• HVAC systems
• General purpose applications

Specs



Catalog Number AOM3714T Enclosure TEAO Frame 215T Frame Material Steel Frequency 60.00 Hz Haz Area Class and Group None Haz Area Division Not Applicable Motor Letter Type Three Phase Output @ Frequency 10.000 HP @ 60 HZ Phase 3 Synchronous Speed @ Frequency 1800 RPM @ 60 HZ Voltage @ Frequency 208.0 V @ 60 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ Agency Approvals CURUS Ambient Temperature 40 °C Auxillary Box No Auxillary Box Auxillary Box Lead Termination None Base Indicator Rigid Bearing Grease Type Polyrex EM (-20F +300F) Blower None Current @ Voltage 14.400 A @ 460.0 V
28.200 A @ 208.0 V
28.800 A @ 230.0 V Design Code A Drip Cover No Drip Cover Duty Rating CONT Efficiency @ 100% Load 89.5 % Electrically Isolated Bearing Not Electrically Isolated Feedback Device NO FEEDBACK Front Face Code Standard Front Shaft Indicator None Heater Indicator No Heater High Voltage Full Load Amps 14.4 a Insulation Class F Inverter Code Not Inverter KVA Code K Lifting Lugs Standard Lifting Lugs Locked Bearing Indicator Locked Bearing Motor Lead Exit Ko Box Motor Lead Quantity/Wire Size 9 @ 14 AWG Motor Lead Termination Flying Leads Motor Standards NEMA Motor Type 3740M Mounting Arrangement F1 Number of Poles 4 Overall Length 17.45 IN Power Factor 72 Product Family General Purpose Pulley End Bearing Type Ball Pulley Face Code Standard Pulley Shaft Indicator Standard Rodent Screen None Service Factor 1.15 Shaft Diameter 1.375 IN Shaft Extension Location Pulley End Shaft Ground Indicator No Shaft Grounding Shaft Rotation Reversible Shaft Slinger Indicator No Slinger Speed 1765 rpm Speed Code Single Speed Starting Method Direct on line Thermal Device - Bearing None Thermal Device - Winding None Vibration Sensor Indicator No Vibration Sensor Winding Thermal 1 None Winding Thermal 2 None
Nameplate



CAT.NO. AOM3714T
SPEC. 37F359L951H1
HP 10 AIR OVER
VOLTS 208-230/460
AMP 28.2-28.8/14.4
RPM 1765
FRAME 215T HZ 60 PH 3
SER.F. 1.15 CODE K DES A CLASS F
NEMA-NOM-EFF 89.5 PF 72
RATING 40C AMB-CONT
CC
DE 6307 ODE 6206
ENCL TEAO SN
1700 FPM AT 170CFM
NP1256L



Performance



My Sales Office

23A BALDOR PHILADELPHIA (23A)
500 STATE RD STE A
BENSALEM, PA Manager: Steve Davis
Phone: 856-840-8011
Fax: 315-253-9923

Website Support

Email: Website Support

User Information

Welcome AMBER REED!
User Name: AMBERR
Company Name: SQUARE ONE ELECTRIC

2/19/2025

 230071

SQUARE ONE ELECTRIC SERVICE CO

Product Search

Need to enter multiple items? Pricing and Availability Order Entry

Product Detail

0000230071 - SQUARE ONE ELECTRIC SERVICE CO (change) AOM3714T 10 AIR OVERHP,1765RPM,3PH,60HZ,215T,3740 PDF Build Product Information Packet PDF
List Price (USD) 1,894.00
Mult / Quote L1 HV3 HV3S1 [ 0.486]
Net Price (USD) 920.48


Performance Data at

(Typical performance - Not guaranteed values)

General Characteristics

Full Load Torque 29.52 LB-FT Start Configuration DOL
No-Load Current 8.67 Amps Break-Down Torque 126 LB-FT
Line-line Res. @ 25°C. 0.991 Ohms A Ph / 0 Ohms B Ph Pull-Up Torque 57.3 LB-FT
Temp. Rise @ Rated Load 77°C Locked-Rotor Torque 73.6 LB-FT
Temp. Rise @ S.F. Load 90°C Starting Current 111 Amps

Load Characteristics

% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 31 52 65 72 77 80 75
Efficiency 81 88.3 89.3 89.7 89.2 88.5 89.4
Speed (RPM) 1793 1785 1777 1769 1760 1751 1764
Line Amperes 9.09 10.33 11.98 14.36 16.93 19.67 15.9



Parts

Product Number

Description

Quantity

SA412871

SA 37F359L951H1

1 EA

RA404558

RA 37F359L951H1

1 EA

HW3200A01

3/8-16X3/4 EYEBOLT WELDED F/S

1 EA

37CB3004

37 CB CASTING W/1.09 LEAD HOLE @ 6:00

1 EA

37GS1000SP

GASKET, CONDUIT BOX STD., .06 THICK LEXI

1 EA

10XN2520A10

1/4-20X 5/8 HEX HD X

2 EA

HW1001A25

LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I

2 EA

11XW1032G06

10-32 X .38, TAPTITE II, HEX WSHR SLTD U

1 EA

37EP3101A02

FR ENDPLATE, 37L&M-TENV MTR, MACH

1 EA

HW4500A01

1641B(ALEMITE)400 UNIV, GREASE FITT

1 EA

HW5100A06

W2420-025 WVY WSHR (WB)

1 EA

37EP3100A09

PU ENDPLATE, MACH

1 EA

HW4500A01

1641B(ALEMITE)400 UNIV, GREASE FITT

1 EA

10XN2520A28

1/4-20X 1 3/4 HEX HD

4 EA

HW1001A25

LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I

4 EA

XY3118A12

5/16-18 HEX NUT DIRECTIONAL SERRATION

4 EA

37CB4516

LIPPED LID FOR 37 FRAME NEC KOBX

1 EA

37GS1008

37 GS FOR CB LID - LEXIDE

1 EA

51XW0832A07

8-32 X .44, TAPTITE II, HEX WSHR SLTD SE

4 EA

HW2501F21

KEY, 5/16 SQ X 2.375

1 EA

HA7000A02

KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA

1 EA

85XU0407S04

4X1/4 U DRIVE PIN STAINLESS

2 EA

MJ1000A02

GREASE, POLYREX EM EXXON

0.05 LB

MG1050G01

CELEROL MEDIUM CHARCOAL METALLIC GRAY

0.028 GA

HA3104A17

5/16-18X13.250 T-BLT/OHIO

4 EA

LC0005

CONN.DIA.,TY M,9-LD,DUAL VOLT,REVERSING

1 EA

NP1256L

ALUM UL CC INDUSTRIAL MOTOR A60

1 EA

37PA1074

PALLET PACK GRP, PRINT BOX PK1026A06

1 EA

MN416A01

TAG-INSTAL-MAINT no wire (2500bx)4/22

1 EA

LB1624

COMBINED WARNING LABEL, ISO/ANSI PICTOGR

1 EA
