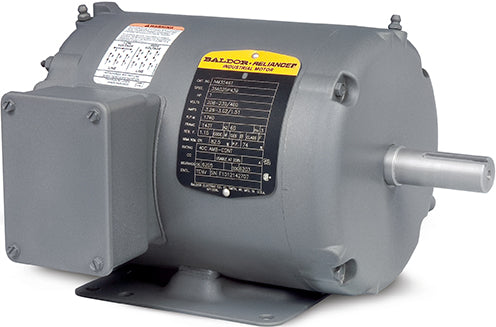

AOM3708T Baldor Motor 5HP 1140RPM 215T TEAO 230/460 Volt 3 Phase 34H317W204

SKU: AOM3708T
$4,699.58
$7,441.00 Sale $4,699.58
Description

Features:
• 36” long leads for ease of connectivity
• Oversized ball bearings for large overhung load from shaft mounted fans
• Locked DE bearing to allow mounting in any configuration

Applications:
• Fans
• Pumps
• Blowers
• Condensers
• Air handling
• HVAC systems
• General purpose applications

SPECS
Catalog Number AOM3708T Enclosure TEAO Frame 215T Frame Material Steel Frequency 60.00 Hz Haz Area Class and Group None Haz Area Division Not Applicable Motor Letter Type Three Phase Output @ Frequency 5.000 HP @ 60 HZ Phase 3 Synchronous Speed @ Frequency 1200 RPM @ 60 HZ Voltage @ Frequency 208.0 V @ 60 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ Agency Approvals CURUS Ambient Temperature 40 °C Auxillary Box No Auxillary Box Auxillary Box Lead Termination None Base Indicator Rigid Bearing Grease Type Polyrex EM (-20F +300F) Blower None Current @ Voltage 14.400 A @ 230.0 V
16.000 A @ 208.0 V
7.700 A @ 460.0 V Design Code B Drip Cover No Drip Cover Duty Rating CONT Efficiency @ 100% Load 86.5 % Electrically Isolated Bearing Not Electrically Isolated Feedback Device NO FEEDBACK Front Face Code Standard Front Shaft Indicator None Heater Indicator No Heater High Voltage Full Load Amps 7.7 a Insulation Class F Inverter Code Not Inverter KVA Code J Lifting Lugs Standard Lifting Lugs Locked Bearing Indicator Locked Bearing Motor Lead Exit Ko Box Motor Lead Quantity/Wire Size 9 @ 14 AWG Motor Lead Termination Flying Leads Motor Standards NEMA Motor Type 3734M Mounting Arrangement F1 Number of Poles 6 Overall Length 16.32 IN Power Factor 69 Product Family General Purpose Pulley End Bearing Type Ball Pulley Face Code Standard Pulley Shaft Indicator Standard Rodent Screen None Service Factor 1.00 Shaft Diameter 1.375 IN Shaft Extension Location Pulley End Shaft Ground Indicator No Shaft Grounding Shaft Rotation Reversible Shaft Slinger Indicator No Slinger Speed 1150 rpm Speed Code Single Speed Starting Method Direct on line Thermal Device - Bearing None Thermal Device - Winding None Vibration Sensor Indicator No Vibration Sensor Winding Thermal 1 None Winding Thermal 2  None



Nameplate



CAT.NO. AOM3708T
SPEC. 37F359L953G1
HP 5 AIR OVER
VOLTS 208-230/460
AMP 16-14.4/7.7
RPM 1150
FRAME 215T HZ 60 PH 3
SER.F. 1.00 CODE J DES B CLASS F
NEMA-NOM-EFF 86.5 PF 69
RATING 40C AMB-CONT
CC
DE 6307 ODE 6206
ENCL TEAO SN
1275 FPM AT 170CFM
NP1256L
Performance



General Characteristics

Full Load Torque 22.62 LB-FT Start Configuration DOL
No-Load Current 4.3 Amps Break-Down Torque 68.4 LB-FT
Line-line Res. @ 25°C. 2.03 Ohms A Ph / 0 Ohms B Ph Pull-Up Torque 44.5 LB-FT
Temp. Rise @ Rated Load 79°C Locked-Rotor Torque 49.9 LB-FT
Temp. Rise @ S.F. Load Starting Current 48.3 Amps

Load Characteristics

% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 32 51 63 69 73 75 0
Efficiency 79.7 86.6 87.2 86.5 84.5 82 0
Speed (RPM) 1189 1178 1166 1153 1136 1116 0
Line Amperes 4.53 5.32 6.4 7.74 9.5 11.43 0



Parts



Product Number

Description

Quantity

SA412873

SA 37F359L953G1

1 EA

RA404560

RA 37F359L953G1

1 EA

HW3200A01

3/8-16X3/4 EYEBOLT WELDED F/S

1 EA

37CB3004

37 CB CASTING W/1.09 LEAD HOLE @ 6:00

1 EA

37GS1000SP

GASKET, CONDUIT BOX STD., .06 THICK LEXI

1 EA

10XN2520A10

1/4-20X 5/8 HEX HD X

2 EA

HW1001A25

LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I

2 EA

11XW1032G06

10-32 X .38, TAPTITE II, HEX WSHR SLTD U

1 EA

37EP3101A02

FR ENDPLATE, 37L&M-TENV MTR, MACH

1 EA

HW4500A01

1641B(ALEMITE)400 UNIV, GREASE FITT

1 EA

HW5100A06

W2420-025 WVY WSHR (WB)

1 EA

37EP3100A09

PU ENDPLATE, MACH

1 EA

HW4500A01

1641B(ALEMITE)400 UNIV, GREASE FITT

1 EA

10XN2520A28

1/4-20X 1 3/4 HEX HD

4 EA

HW1001A25

LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I

4 EA

XY3118A12

5/16-18 HEX NUT DIRECTIONAL SERRATION

4 EA

37CB4516

LIPPED LID FOR 37 FRAME NEC KOBX

1 EA

37GS1008

37 GS FOR CB LID - LEXIDE

1 EA

51XW0832A07

8-32 X .44, TAPTITE II, HEX WSHR SLTD SE

4 EA

HW2501F21

KEY, 5/16 SQ X 2.375

1 EA

HA7000A02

KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA

1 EA

85XU0407S04

4X1/4 U DRIVE PIN STAINLESS

2 EA

MJ1000A02

GREASE, POLYREX EM EXXON

0.05 LB

MG1050G01

CELEROL MEDIUM CHARCOAL METALLIC GRAY

0.028 GA

HA3104A14

THRUBOLT- 5/16-18 X12.125(OHIO)

4 EA

LC0005

CONN.DIA.,TY M,9-LD,DUAL VOLT,REVERSING

1 EA

NP1256L

ALUM UL CC INDUSTRIAL MOTOR A60

1 EA

37PA1074

PALLET PACK GRP, PRINT BOX PK1026A06

1 EA

MN416A01

TAG-INSTAL-MAINT no wire (2500bx)4/22

1 EA

LB1624

COMBINED WARNING LABEL, ISO/ANSI PICTOGR

1 EA
