Home » AOM3614T Baldor Motor 2HP 1140RPM 184T TEAO 208-230/460 Volt 3 Phase 36G256S950G1
AOM3614T Baldor Motor 2HP 1140RPM 184T TEAO 3 Phase 36G256S950G1

* Image is for reference only

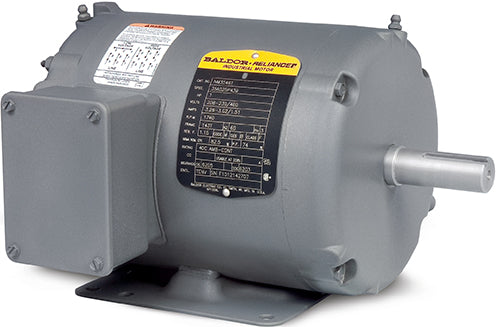

AOM3614T Baldor Motor 2HP 1140RPM 184T TEAO 208-230/460 Volt 3 Phase 36G256S950G1

SKU: AOM3614T
$759.00
$1,265.00 Sale $759.00

Features:
• 36” long leads for ease of connectivity
• Oversized ball bearings for large overhung load from shaft mounted fans
• Locked DE bearing to allow mounting in any configuration

Applications:
• Fans
• Pumps
• Blowers
• Condensers
• Air handling
• HVAC systems
• General purpose applications





Catalog Number AOM3614T Enclosure TEAO Frame 184T Frame Material Steel Frequency 60.00 Hz Haz Area Class and Group None Haz Area Division Not Applicable Motor Letter Type Three Phase Output @ Frequency 2.000 HP @ 60 HZ Phase 3 Synchronous Speed @ Frequency 1200 RPM @ 60 HZ Voltage @ Frequency 208.0 V @ 60 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ Agency Approvals CURUS Ambient Temperature 40 °C Auxillary Box No Auxillary Box Auxillary Box Lead Termination None Base Indicator Rigid Bearing Grease Type Polyrex EM (-20F +300F) Blower None Current @ Voltage 3.400 A @ 460.0 V
6.800 A @ 230.0 V
6.900 A @ 208.0 V Design Code B Drip Cover No Drip Cover Duty Rating CONT Efficiency @ 100% Load 81.5 % Electrically Isolated Bearing Not Electrically Isolated Feedback Device NO FEEDBACK Front Face Code Standard Front Shaft Indicator None Heater Indicator No Heater High Voltage Full Load Amps 3.4 a Insulation Class F Inverter Code Not Inverter KVA Code J Lifting Lugs No Lifting Lugs Locked Bearing Indicator Locked Bearing Motor Lead Exit Ko Box Motor Lead Quantity/Wire Size 9 @ 16 AWG Motor Lead Termination Flying Leads Motor Standards NEMA Motor Type 3628M Mounting Arrangement F1 Number of Poles 6 Overall Length 15.00 IN Power Factor 68 Product Family General Purpose Pulley End Bearing Type Ball Pulley Face Code Standard Pulley Shaft Indicator Standard Rodent Screen None RoHS Status ROHS COMPLIANT Service Factor 1.00 Shaft Diameter 1.125 IN Shaft Extension Location Pulley End Shaft Ground Indicator No Shaft Grounding Shaft Rotation Reversible Shaft Slinger Indicator No Slinger Speed 1160 rpm Speed Code Single Speed Starting Method Direct on line Thermal Device - Bearing None Thermal Device - Winding None Vibration Sensor Indicator No Vibration Sensor Winding Thermal 1 None Winding Thermal 2 None



CAT.NO. AOM3614T
SPEC. 36G256S950G1
HP 2 AIR OVER
VOLTS 208-230/460
AMP 6.9-6.8/3.4
RPM 1160
FRAME 184T HZ 60 PH 3
SER.F. 1.00 CODE J DES B CLASS F
NEMA-NOM-EFF 81.5 PF 68
RATING 40C AMB-CONT
CC
DE 6206 ODE 6205
ENCL TEAO SN
1250 FPM AT 100CFM
NP1256L



General Characteristics

Full Load Torque 9.02 LB-FT Start Configuration DOL
No-Load Current 2.16 Amps Break-Down Torque 29.8 LB-FT
Line-line Res. @ 25°C. 8.72 Ohms A Ph / 0 Ohms B Ph Pull-Up Torque 15.36 LB-FT
Temp. Rise @ Rated Load 65°C Locked-Rotor Torque 19.03 LB-FT
Temp. Rise @ S.F. Load Starting Current 19.4 Amps

Load Characteristics

% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 30 47 59 68 72 76 0
Efficiency 69.3 79.1 81.5 81.8 80.1 78 0
Speed (RPM) 1191 1183 1173 1162 1150 1133 0
Line Amperes 2.24 2.49 2.88 3.35 4.01 4.72 0



Product Number

Description

Quantity

SA251247

SA 36G256S950G1

1 EA

RA238089

RA 36G256S950G1

1 EA

36CB3004

36 CB CASTING W/1.09 DIA LEAD HOLE @ 6:0

1 EA

36GS1000SP

GASKET-CONDUIT BOX, .06 THICK #SV-330 LE

1 EA

51XB1016A08

10-16X 1/2HXWSSLD SERTYB

2 EA

11XW1032G06

10-32 X .38, TAPTITE II, HEX WSHR SLTD U

1 EA

HW3001B01

BRASS CUP WASHER, FOR #10 SCREW

1 EA

36EP3104B15

FREP TENV 36 205 BRG W/GRSR(RAISED PADS)

1 EA

HW4500A01

1641B(ALEMITE)400 UNIV, GREASE FITT

1 EA

HW5100A05

WVY WSHR F/205 & 304 BRGS

1 EA

36EP3100A15

ENDPLATE, MACH

1 EA

HW4500A01

1641B(ALEMITE)400 UNIV, GREASE FITT

1 EA

10XN2520A20

1/4-20X 1 1/4 HEX HD X

2 EA

HW1001A25

LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I

2 EA

XY2520A12

1/4-20 HEX NUT, DIRECTIONAL SERRATIONS

4 EA

36CB4516

750LIPPED CB LID - GALVANNEAL

1 EA

37GS1001

GASKET, CONDUIT BOX LID, .06 THICK LEXID

1 EA

51XW0832A07

8-32 X .44, TAPTITE II, HEX WSHR SLTD SE

4 EA

HW2501E16

KEY, 1/4 SQ X 1.750

1 EA

HA7000A02

KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA

1 EA

85XU0407S04

4X1/4 U DRIVE PIN STAINLESS

2 EA

MJ1000A02

GREASE, POLYREX EM EXXON

0.05 LB

MG1050G01

CELEROL MEDIUM CHARCOAL METALLIC GRAY

0.022 GA

HA3101A25

THRUBOLT 1/4-20 X 11.000 OHIO ROD

4 EA

LC0005E01

CONN.DIA./WARNING LABEL (LC0005/LB1119N)

1 EA

NP1256L

ALUM UL CC INDUSTRIAL MOTOR A60

1 EA

36PA1000

PKG GRP, PRINT PK1016A06

1 EA

MN416A01

TAG-INSTAL-MAINT no wire (2500bx)4/22

1 EA

FE-0000001

ZRTG FE ASSEMBLY

1 EA
