AOM3558T Baldor Motor 2HP 1725RPM 145T TEAO 3 Phase 35K695P805G1

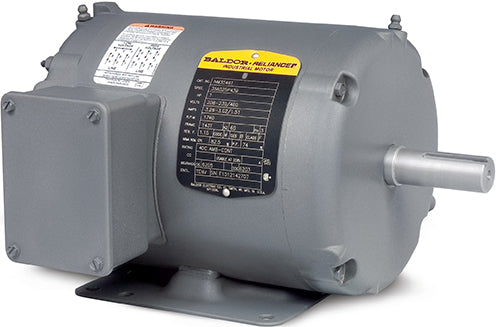

* Image is for reference only

AOM3558T Baldor Fan Motor 2HP 1725RPM 145T TEAO 230/460 Volt 3 Phase 35K695P805G1

SKU: AOM3558T
Sale
Description

Features:
• 36” long leads for ease of connectivity
• Oversized ball bearings for large overhung load from shaft mounted fans
• Locked DE bearing to allow mounting in any configuration

Applications:
• Fans
• Pumps
• Blowers
• Condensers
• Air handling
• HVAC systems
• General purpose applications



Specs
Catalog Number AOM3558T Enclosure TEAO Frame 145T Frame Material Steel Frequency 60.00 Hz Haz Area Class and Group None Haz Area Division Not Applicable Motor Letter Type Three Phase Output @ Frequency 2.000 HP @ 60 HZ Phase 3 Synchronous Speed @ Frequency 1800 RPM @ 60 HZ Voltage @ Frequency 208.0 V @ 60 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ Agency Approvals CURUS Ambient Temperature 40 °C Auxillary Box No Auxillary Box Auxillary Box Lead Termination None Base Indicator Rigid Bearing Grease Type Polyrex EM (-20F +300F) Blower None Current @ Voltage 2.950 A @ 460.0 V
5.900 A @ 230.0 V
6.100 A @ 208.0 V Design Code B Drip Cover No Drip Cover Duty Rating CONT Efficiency @ 100% Load 82.5 % Electrically Isolated Bearing Not Electrically Isolated Feedback Device NO FEEDBACK Front Face Code Standard Front Shaft Indicator None Heater Indicator No Heater High Voltage Full Load Amps 3.0 a Insulation Class F Inverter Code Not Inverter KVA Code K Lifting Lugs No Lifting Lugs Locked Bearing Indicator Locked Bearing Motor Lead Exit Ko Box Motor Lead Quantity/Wire Size 9 @ 18 AWG Motor Lead Termination Flying Leads Motor Standards NEMA Motor Type 3524M Mounting Arrangement F1 Number of Poles 4 Overall Length 12.12 IN Power Factor 76 Product Family General Purpose Pulley End Bearing Type Ball Pulley Face Code Standard Pulley Shaft Indicator Standard Rodent Screen None RoHS Status ROHS COMPLIANT Service Factor 1.15 Shaft Diameter 0.875 IN Shaft Extension Location Pulley End Shaft Ground Indicator No Shaft Grounding Shaft Rotation Reversible Shaft Slinger Indicator No Slinger Speed 1735 rpm Speed Code Single Speed Starting Method Direct on line Thermal Device - Bearing None Thermal Device - Winding None Vibration Sensor Indicator No Vibration Sensor Winding Thermal 1 None Winding Thermal 2 None



Nameplate
CAT.NO. AOM3558T
SPEC. 35K695Z922G1
HP 2 AIR OVER
VOLTS 208-230/460
AMP 6.1-5.9/2.95
RPM 1735
FRAME 145T HZ 60 PH 3
SER.F. 1.15 CODE K DES B CLASS F
NEMA-NOM-EFF 82.5 PF 76
RATING 40C AMB-CONT
CC
DE 6205 ODE 6203
ENCL TEAO SN
SFA 7-6.6/3.3
NP1256L



Performance



General Characteristics

Full Load Torque 6.05 LB-FT Start Configuration DOL
No-Load Current 1.74 Amps Break-Down Torque 23.39 LB-FT
Line-line Res. @ 25°C. 10.6 Ohms A Ph / 0 Ohms B Ph Pull-Up Torque 18.17 LB-FT
Temp. Rise @ Rated Load 75°C Locked-Rotor Torque 21.97 LB-FT
Temp. Rise @ S.F. Load 90°C Starting Current 23.33 Amps

Load Characteristics

% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 36 56 69 77 82 85 80
Efficiency 72.6 81.5 83.6 83.3 81.9 80 82.5
Speed (RPM) 1785 1771 1755 1738 1721 1700 1728
Line Amperes 1.82 2.07 2.44 2.92 3.5 4.11 3.27



Parts

Product Number

Description

Quantity

SA411388

SA 35K695Z922G1

1 EA

RA403030

RA 35K695Z922G1

1 EA

35FN3002A05SP

EXFN, PLASTIC, 6.376 OD, .638 ID

1 EA

NS2512A01

INSULATOR, CONDUIT BOX X

1 EA

35CB3007

35 CB CASTING W/.88 DIA. LEAD HOLE

1 EA

36GS1000SP

GASKET-CONDUIT BOX, .06 THICK #SV-330 LE

1 EA

51XB1016A07

10-16 X 7/16 HXWSSLD SERTYB

2 EA

11XW1032G06

10-32 X .38, TAPTITE II, HEX WSHR SLTD U

1 EA

35EP3122L00

MASTER ODE,203 BRG,#26 DRN,GRSR

1 EA

HW4500A01

1641B(ALEMITE)400 UNIV, GREASE FITT

1 EA

HW5100A03

WAVY WASHER (W1543-017)

1 EA

35EP3123R08

CUSTOM DE,205 BRG,1.232SH,#26 DRN,GRSR,L

1 EA

HW4500A01

1641B(ALEMITE)400 UNIV, GREASE FITT

1 EA

51XN1032A20

10-32 X 1 1/4 HX WS SL SR

2 EA

XY1032A02

10-32 HEX NUT DIRECTIONAL SERRATION

4 EA

35CB4521GX

CONDUIT BOX LID KIT **ORDER INDIV PARTS

1 EA

51XW0832A07

8-32 X .44, TAPTITE II, HEX WSHR SLTD SE

4 EA

HW2501D13

KEY, 3/16 SQ X 1.375

1 EA

HA7000A01

KEY RETAINER 7/8" DIA SHAFT

1 EA

85XU0407S04

4X1/4 U DRIVE PIN STAINLESS

2 EA

MJ1000A02

GREASE, POLYREX EM EXXON

0.05 LB

MG1050G01

CELEROL MEDIUM CHARCOAL METALLIC GRAY

0.017 GA

HA3100A18

THRUBOLT 10-32 X 9.250

4 EA

LC0005E01

CONN.DIA./WARNING LABEL (LC0005/LB1119N)

1 EA

NP1256L

ALUM UL CC INDUSTRIAL MOTOR A60

1 EA

35PA1066

PKG GRP, PRINT PK1008A06

1 EA

MN416A01

TAG-INSTAL-MAINT no wire (2500bx)4/22

1 EA

FE-0000001

ZRTG FE ASSEMBLY

1 EA
