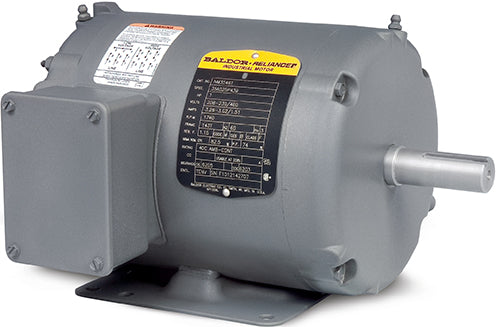

AOM3556T Baldor Motor 1HP 1140RPM 145T TEAO 208-230/460 Volt 3 Phase 35K695N025G1

SKU: AOM3556T
$618.60
$1,031.00 Sale $618.60

Features:
• 36” long leads for ease of connectivity
• Oversized ball bearings for large overhung load from shaft mounted fans
• Locked DE bearing to allow mounting in any configuration

Applications:
• Fans
• Pumps
• Blowers
• Condensers
• Air handling
• HVAC systems
• General purpose applications





Catalog Number AOM3556T Enclosure TEAO Frame 145T Frame Material Steel Frequency 60.00 Hz Haz Area Class and Group None Haz Area Division Not Applicable Motor Letter Type Three Phase Output @ Frequency 1.000 HP @ 60 HZ Phase 3 Synchronous Speed @ Frequency 1200 RPM @ 60 HZ Voltage @ Frequency 208.0 V @ 60 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ Agency Approvals CURUS Ambient Temperature 40 °C Auxillary Box No Auxillary Box Auxillary Box Lead Termination None Base Indicator Rigid Bearing Grease Type Polyrex EM (-20F +300F) Blower None Current @ Voltage 1.780 A @ 460.0 V
3.560 A @ 230.0 V
3.600 A @ 208.0 V Design Code B Drip Cover No Drip Cover Duty Rating CONT Efficiency @ 100% Load 82.5 % Electrically Isolated Bearing Not Electrically Isolated Feedback Device NO FEEDBACK Front Face Code Standard Front Shaft Indicator None Heater Indicator No Heater High Voltage Full Load Amps 1.8 a Insulation Class F Inverter Code Inverter Ready KVA Code K Lifting Lugs No Lifting Lugs Locked Bearing Indicator Locked Bearing Motor Lead Exit Ko Box Motor Lead Quantity/Wire Size 9 @ 18 AWG Motor Lead Termination Flying Leads Motor Standards NEMA Motor Type 3526M Mounting Arrangement F1 Number of Poles 6 Overall Length 12.12 IN Power Factor 64 Product Family General Purpose Pulley End Bearing Type Ball Pulley Face Code Standard Pulley Shaft Indicator Standard Rodent Screen None Service Factor 1.00 Shaft Diameter 0.875 IN Shaft Extension Location Pulley End Shaft Ground Indicator No Shaft Grounding Shaft Rotation Reversible Shaft Slinger Indicator No Slinger Speed 1170 rpm Speed Code Single Speed Starting Method Direct on line Thermal Device - Bearing None Thermal Device - Winding None Vibration Sensor Indicator No Vibration Sensor Winding Thermal 1 None Winding Thermal 2 None





CAT.NO. AOM3556T
SPEC. 35K695G330G1
HP 1
VOLTS 208-230/460
AMP 3.6-3.56/1.78
RPM 1170
FRAME 145T HZ 60 PH 3
SER.F. 1.00 CODE K DES B CLASS F
NEMA-NOM-EFF 82.5 PF 64
RATING 40C AMB-CONT
CC
DE 6205 ODE 6203
ENCL TEAO SN
NP1256L





General Characteristics

Full Load Torque 4.47 LB-FT Start Configuration DOL
No-Load Current 1.19 Amps Break-Down Torque 13.22 LB-FT
Line-line Res. @ 25°C. 19.9 Ohms A Ph / 0 Ohms B Ph Pull-Up Torque 7.94 LB-FT
Temp. Rise @ Rated Load 48°C Locked-Rotor Torque 9.7 LB-FT
Temp. Rise @ S.F. Load Starting Current 10.19 Amps

Load Characteristics

% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 27 43 55 64 70 73 0
Efficiency 70.2 80.1 82.3 82.5 81.5 79.4 0
Speed (RPM) 1193 1187 1180 1172 1163 1153 0
Line Amperes 1.23 1.36 1.54 1.78 2.06 2.41 0



Product Number

Description

Quantity

SA407327

SA 35K695G330G1

1 EA

RA398826

RA 35K695G330G1

1 EA

NS2512A01

INSULATOR, CONDUIT BOX X

1 EA

35CB3007

35 CB CASTING W/.88 DIA. LEAD HOLE

1 EA

36GS1000SP

GASKET-CONDUIT BOX, .06 THICK #SV-330 LE

1 EA

51XB1016A07

10-16 X 7/16 HXWSSLD SERTYB

2 EA

11XW1032G06

10-32 X .38, TAPTITE II, HEX WSHR SLTD U

1 EA

35EP3122L00

MASTER ODE,203 BRG,#26 DRN,GRSR

1 EA

HW4500A01

1641B(ALEMITE)400 UNIV, GREASE FITT

1 EA

HW5100A03

WAVY WASHER (W1543-017)

1 EA

35EP3123R08

CUSTOM DE,205 BRG,1.232SH,#26 DRN,GRSR,L

1 EA

HW4500A01

1641B(ALEMITE)400 UNIV, GREASE FITT

1 EA

51XN1032A20

10-32 X 1 1/4 HX WS SL SR

2 EA

XY1032A02

10-32 HEX NUT DIRECTIONAL SERRATION

4 EA

35CB4521GX

CONDUIT BOX LID KIT **ORDER INDIV PARTS

1 EA

51XW0832A07

8-32 X .44, TAPTITE II, HEX WSHR SLTD SE

4 EA

HW2501D13

KEY, 3/16 SQ X 1.375

1 EA

HA7000A01

KEY RETAINER 7/8" DIA SHAFT

1 EA

85XU0407S04

4X1/4 U DRIVE PIN STAINLESS

2 EA

MJ1000A02

GREASE, POLYREX EM EXXON

0.05 LB

MG1050G01

CELEROL MEDIUM CHARCOAL METALLIC GRAY

0.017 GA

HA3100A38

THRUBOLT 10-32 X 9.375

4 EA

LC0005E01

CONN.DIA./WARNING LABEL (LC0005/LB1119N)

1 EA

NP1256L

ALUM UL CC INDUSTRIAL MOTOR A60

1 EA

35PA1066

PKG GRP, PRINT PK1008A06

1 EA

MN416A01

TAG-INSTAL-MAINT no wire (2500bx)4/22

1 EA

FE-0000001

ZRTG FE ASSEMBLY

1 EA
