B2979 Century Motor 2 - 1/3HP 3450/1725RPM 56J ODP 230 Volt 1 Phase - Square One Electric Motors & Pumps

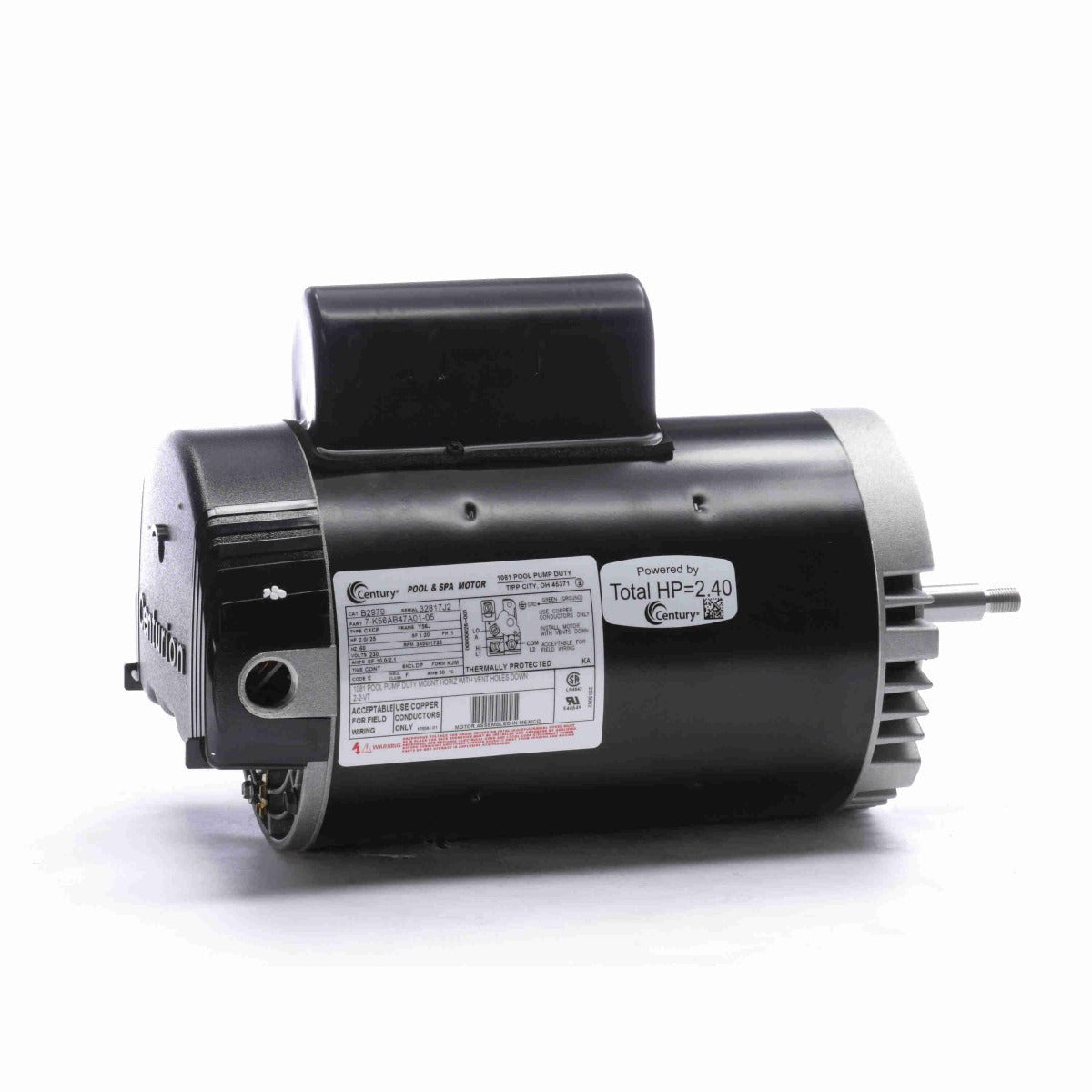

* Image is for reference only

B2979 Century Motor 2-1/3HP 3450/1725RPM 56J ODP 230 Volt 1 Phase

SKU: B2979
$561.70
Sale $561.70
Description

Title 20 CCR section 1605.3(g)(5):Â We are unable to ship this product to California

  • Sealed Ball Bearings
  • Two Speed
  • Energy Efficient
  • Permanent Split Capacitor
  • UL 1081 Design
  • High Speed Switchless
  • Low Speed Microswitch
  • Threaded Shaft
  • 303 Stainless Steel Shaft
  • Meets California Energy Commission Appliance Regulations 2008

Alternate Part #'s

1105170400, 152687, 158227, 158568, 159819, 159820, 159945, 1620Z-2-MC, 1620Z-2-MSC, 165980, 177064, 177107, 177111, 177112, 177153, 181094, 181389, 181390, 190041, 190066, 190116, 190126, 190128, 190178, 190191, 190217, 190218, 19315, 193637, 35B1200, 5KCR48UN3017X, 7-177064-05, 7-K56AB47A01-05, 8-177064-05, 8-177107-04, 817706405, A056480, B2979, B929, B940, B941, B959, B979, C1443, CT120T, EB979, F56AA72A01, K48M2N116, K48M2N116A3, K48M2N116A4, K48M2N116A5, K48M2N117, K56AB47A01, K56N2N102A1, K56N2N103, K56N2N103A6, K56N2PA109C1, MGT605118, SP-1620-Z2-MC, SP-1620-Z2-MSC, SP4015X202, STS1202, STS1202R, STS1202RV1, STS1202VRV1, 35-126-1322, AOSB2979, MGT-60-5118

Specifications

Nameplate Specifications

Phase: 1 Output HP: 2.0/.25 Hp
Output KW: 1.5 kW Voltage: 230 V
Speed: 3450/1725 rpm Service Factor: 1.2
Frame: Y56J Enclosure: Drip Proof
Thermal Protection: Thermally Protected Ambient Temperature: 50 °C
Frequency: 60 Hz Current: SF 10.0/2.1 A
Duty: Continuous Insulation Class: F
UL: Recognized CSA: Y
Number of Speeds: 2-2-VT

Technical Specifications

Electrical Type: Psc Low Speed, Cap Start/Cap Run High Speed Poles: 2/4
Rotation: Clockwise Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: 7/16 Threaded Overall Length: 13.55 in
Frame Length: 8.25 in Shaft Diameter: 0.625 in
Shaft Extension: 2.604 in

General Specifications

UPC: 786674060198 Weight: 36.00 LB
Packaged Length: 16.00 IN Packaged Width: 9.50 IN
Packaged Height: 11.00 IN HTC: 8501.40.6040
Country of Origin: Mexico
