Home » A984 Fasco Draft Inducer Blower | 72CFM, 3000 RPM, OPEN 115V, Single Phase
A984 Fasco Blower - Draft Inducer

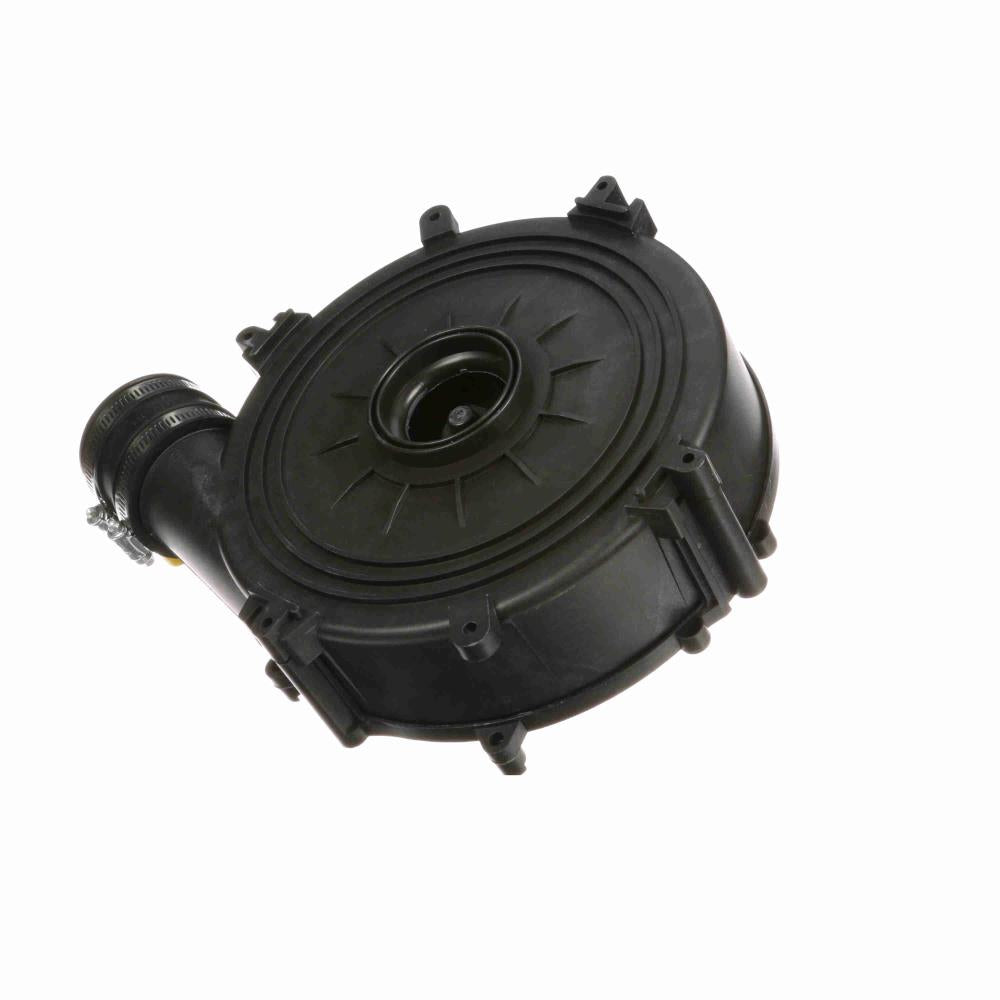

* Image is for reference only

A984 Fasco Draft Inducer Blower | 72CFM, 3000 RPM, OPEN 115V, Single Phase

SKU: A984
$154.63
Sale $154.63
Description
  • OEM Direct Replacement - Draft Inducer Blower
  • C-Frame
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 6.5-5.5" Leads with M Spade Terminals
Specifications

Nameplate Specifications

Voltage: 115 V Motor Type: Shaded Pole
Thermal Protection: Thermally Speed: 3000 rpm
Current: 2.63 A Number of Speeds: 1
Frequency: 60 Hz Phase: 1
Ambient Temperature: 40 °C UL: Yes
Insulation Class: B CSA: Yes

Technical Specifications

Blower Outlet Shape: Round Motor Enclosure: Open
Blower Outlet Flange: No Bearing Type: Ball

General Specifications

UPC: 815585026877 Weight: 7.16 LB
Packaged Length: 12.50 IN Packaged Width: 11.00 IN
Packaged Height: 10.00 IN Country of Origin: Mexico
