Home » 36TC-3-15-18WP Elektrim Motor 15HP 1800 RPM 215YZ TEFC 3 Phase
36TC-3-15-18WP Elektrim Motor 15HP 1800 RPM 3 Phase

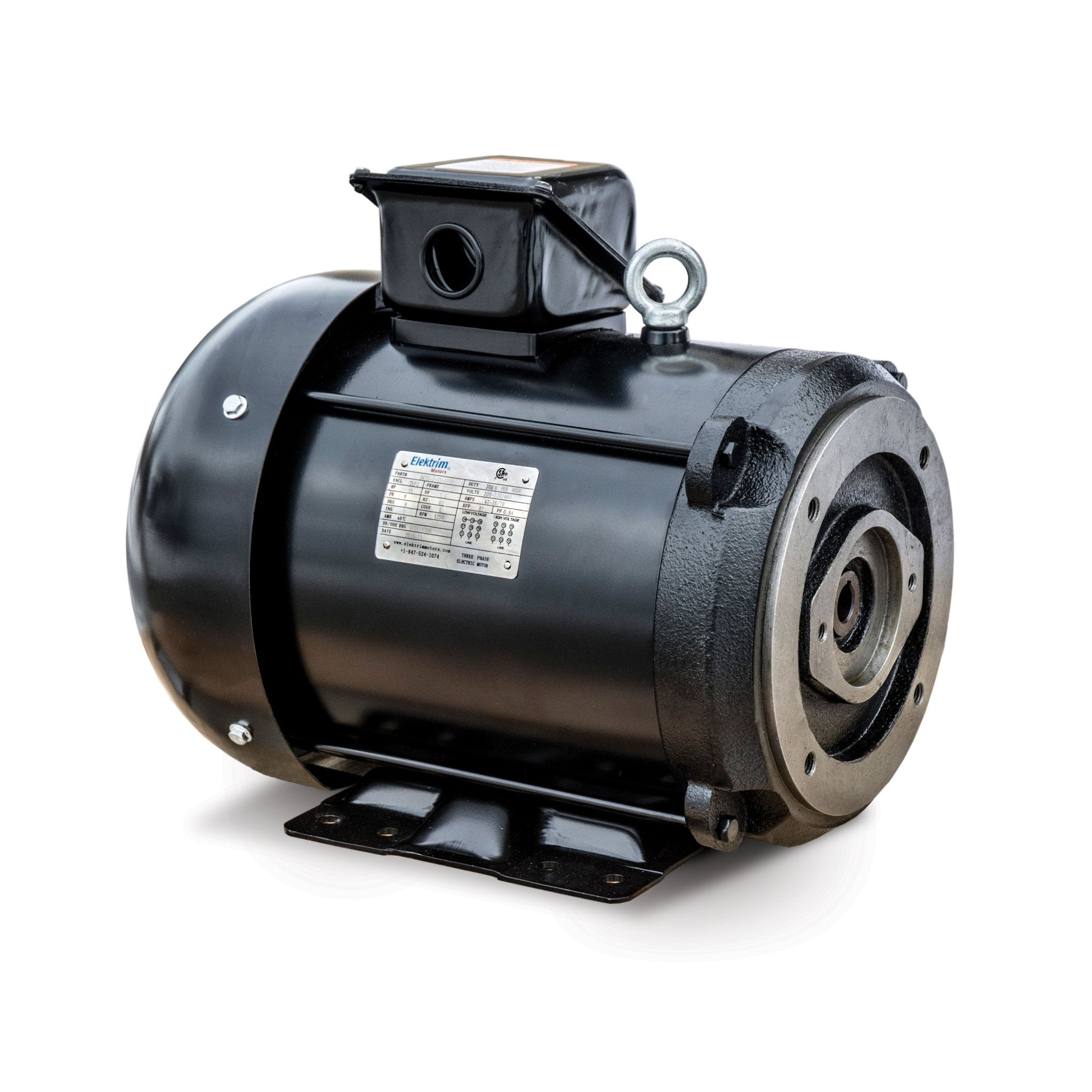

* Image is for reference only

36TC-3-15-18WP Elektrim Motor 15HP 1800 RPM 215YZ TEFC 3 Phase

SKU: 36TC-3-15-18WP
$1,377.92
Sale $1,377.92
Description

SPECIAL MOTOR 3PH 15/10HP 4P 208-230/460V 60Hz 215YZ, CONT/30 MIN DUTY, F3 Mounting Position., TEFC, 15HP nameplate installed, 10HP nameplate attached in bag, smaller 1.09 inch knockout (input) hole in junction box.

  • PRODUCT GROUP: SAE Motors

  • HP / OUTPUT: 15

  • RPM: 1800

  • PHASE: 3

  • VOLTAGE: 208-230/460V 60Hz

  • FRAME: 215YZ

  • FLANGE: SAE

  • DEGREE OF PROTECTION: IP55

  • MOUNTING POSITION: F3

  • ENCLOSURE: TEFC
