Home » 20NCM-3-75-36 Elektrim Motor 75HP 3600 RPM 365TSC TEFC 3 Phase
20NCM-3-75-36 Elektrim Motor 75HP 3600 RPM 3 Phase

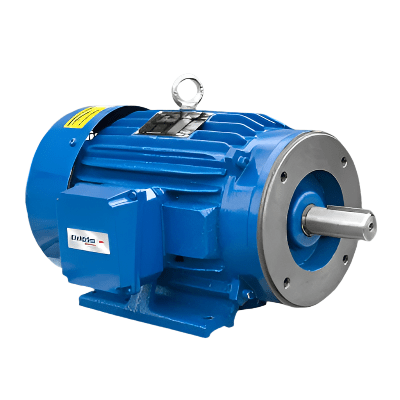

* Image is for reference only

20NCM-3-75-36 Elektrim Motor 75HP 3600 RPM 365TSC TEFC 3 Phase

SKU: 20NCM-3-75-36
$8,552.96
Sale $8,552.96
Description

Elektrim Premium 20N Series TEFC IP55 3600RPM cast iron C-Face electric motor features a 1.2 service factor, 10:1CT & 20:1VT VFD rating, oversized ball bearings, VPI for best electrical performance, and thermistor as standard.

  • PRODUCT GROUP: Premium Efficient

  • HP / OUTPUT: 75

  • RPM: 3600

  • PHASE: 3

  • VOLTAGE: 208-230/460V 60Hz, 190/380V 50Hz

  • FRAME: 365TSC

  • FLANGE: C-Face

  • DEGREE OF PROTECTION: IP55

  • MOUNTING POSITION: F1

  • ENCLOSURE: TEFC
