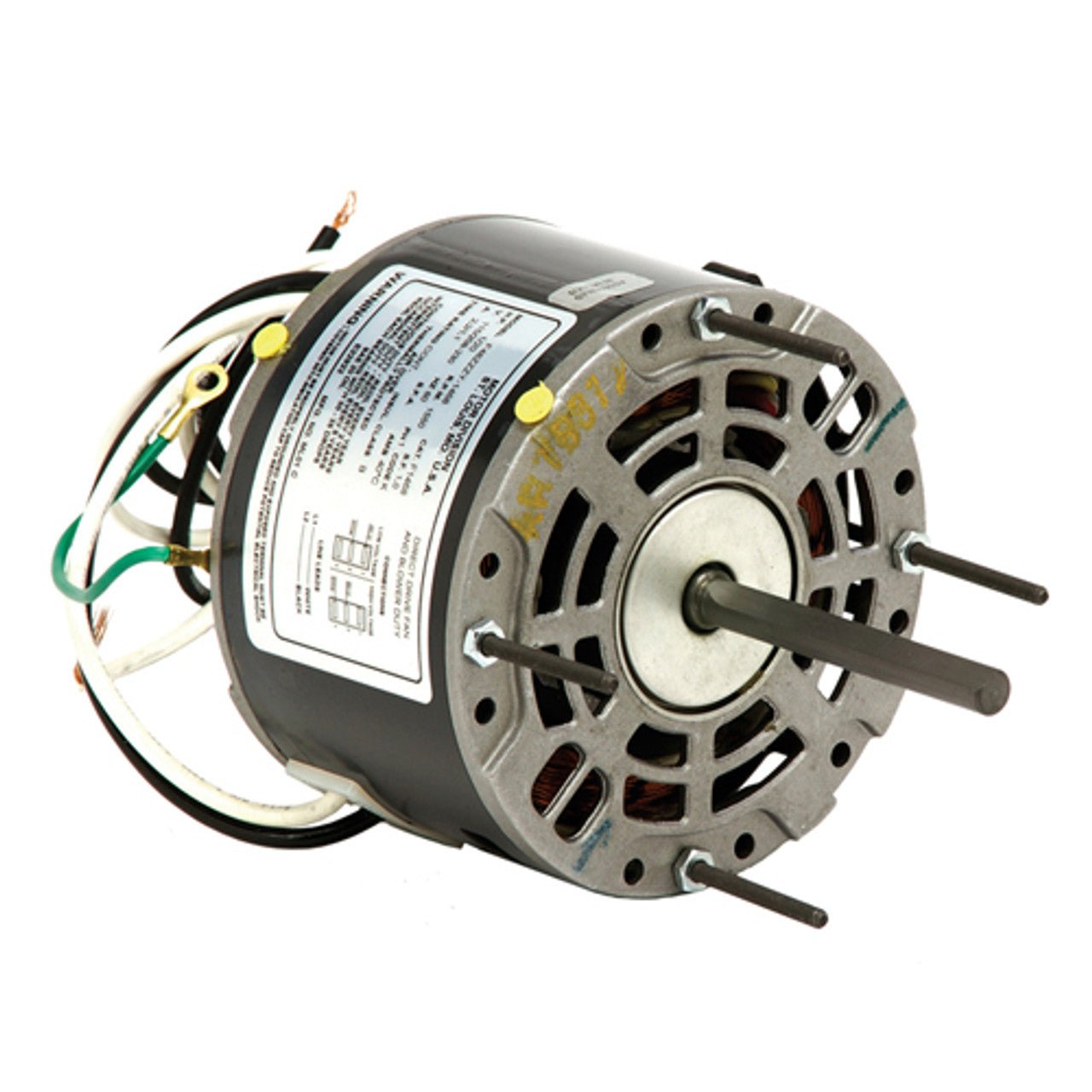

* Image is for reference only

1471P US Motor 1/10HP 1050RPM 5"Open 115V 1Ph CCWLE

Name: 1471P US Motor 1/10HP 1050RPM 5"Open 115V 1Ph CCWLE
Brand: US
SKU: 1471P
Price: 235.84 USD
Availability: InStock

SKU: 1471P

$235.84

Sale $235.84

Description
SPECS:

Description

Model_Number: K048WHH4398011B
PHASE TYPE: 1 PERMANENT SPLIT CAPACITOR ENCLOSURE: OPEN HORSEPOWER: .1 POLES: 6 NUMBER SPEEDS: 1 RPM: 1050 HERTZ: 60 VOLTS: 115/208-230 V FRAME: 42 STATOR DIAMETER: 4.8 STACK: 1 MOUNTING: HUB/STUD MOTOR TYPE: FHP OPPOSITE END BEARING: SELF-ALIGN SHAFT END BEARING: SELF-ALIGN AMBIENT: 40 ROTATION: CCW LEAD END SERVICE FACTOR: 1 SHIPPING WEIGHT: 8 THERMAL PROTECTION: AUTOMATIC RESET INSULATION CLASS: B LOCKED ROTOR AMPS: 3.53 FULL LOAD AMPS PRIMARY: 1.7/0.8

SPECS:

Dimensions

Shaft Dia.	3/8"
Shaft Length	3-1/2"
Length Less Shaft	4 3/8 in
Body Dia.	5"
Overall Length	7.6"
Stud Size	#8-32

Details

Frame	42
HP	1/10 HP
Item	Motor
Motor Application	Frame Replacement Motor
Motor Design	Permanent Split Capacitor
Motor Enclosure Design	Open Drip Proof
Motor Mounting Type	Hub/Stud
Motor Shaft Rotation	Counterclockwise Lead End
Motor Thermal Protection	Automatic
Nameplate RPM	1050 rpm
No. of Speeds	1
Number of Shafts	1
Phase	1
RPM Range	1,101-1,200
Voltage	115/208-230V
Motor Bearings	Self Align Bearings
Replacement For	HG3253, HG3254, HG3275, HG3263, HG3264
Ins. Class	B
Max. Ambient Temp.	40 Degrees C
Duty	Continuous
Full Load Amps	3.8/1.9A
Capacitor Required	Included
Hz	60 Hz
Motor Service Factor	1.00
Weight	8.38 lb
Max. Amps	3.53 A
Watts	100 W
Duty Cycle	Continuous
